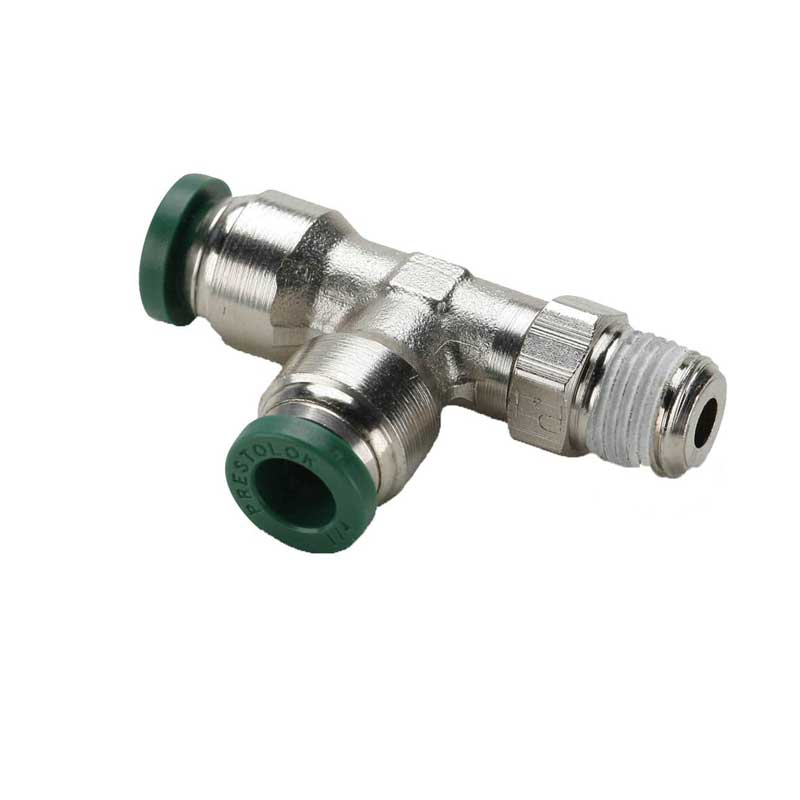

Swivel Run Tee: 1/4 in Push Tube x 1/4 in MNPT | SKU 71PCS-4-4
$10.62
Push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.
SKU
71PCS-4-4
Specifications
| SKU | 71-PCS-4-4 |
|---|---|
| Material | Nickel plated brass |
| Seal Material | Nitrile |
| Style | Tube to Pipe |
| Connection 1 Tube O.D. | 1/4 in |
| Connection 2 Thread Size | 1/4 in |
| Connection 2 Style | Male pipe |
| C Hex | 9/16 |
| L | 0.85 |
| N | 1.10 |
| Flow Dia. D | 0.156 |
| Applications | Air lines, inert gases, oil lines, vacuum lines |
| Operating Pressure | 300 (20 bar) |
| Vacuum Pressure Rating | 28 inHg |
| Minimum Operating Temperature | 0°F (-18°C) |
| Maximum Operating Temperature | 200°F (93°F) |
