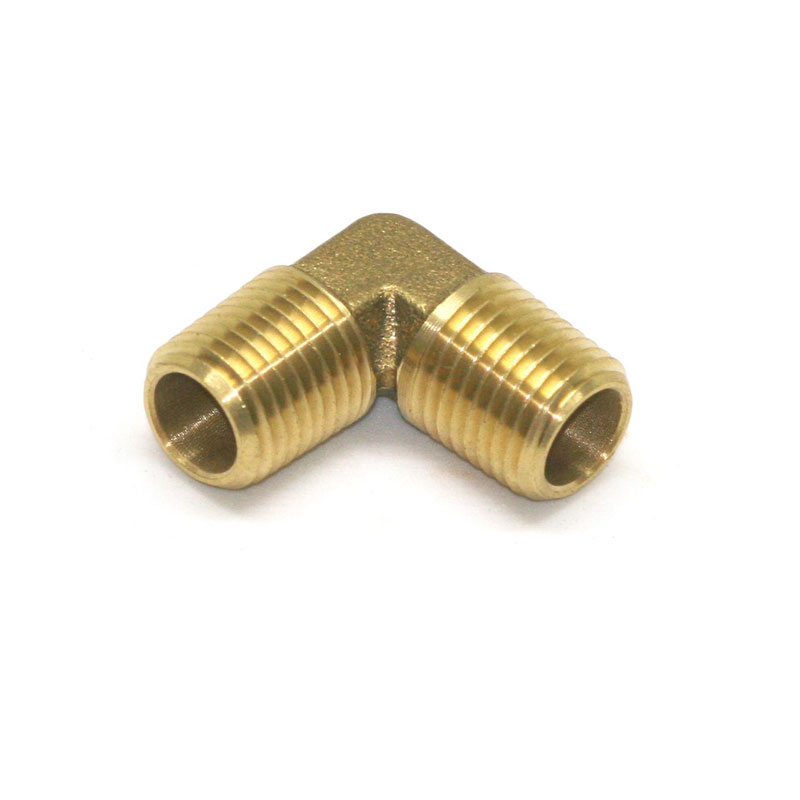

One piece construction. Used with brass or steel pipe. Temperature range: -65°F to 250°F (-53°C to +121°C). All pipe threads are "American Standard Pipe Threads." Fair vibration resistance. Used in low to medium pressure applications. Teflon tape or pipe sealant is recommended. Pipe thread should be tightened 2-1/2 turns past finger tight.
Nominal Pipe Size | 1/16 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
---|---|---|---|---|---|---|---|
Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11 1/2 |
Working Pressure (psi) | 1200 | 1200 | 1200 | 1200 | 1200 | 1000 | 1000 |
Thread OD | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | 1-1/4 |
