Inline Aluminum Bleed Valve 6000 psi: 1/4 in FNPT x 1/4 in MNPT

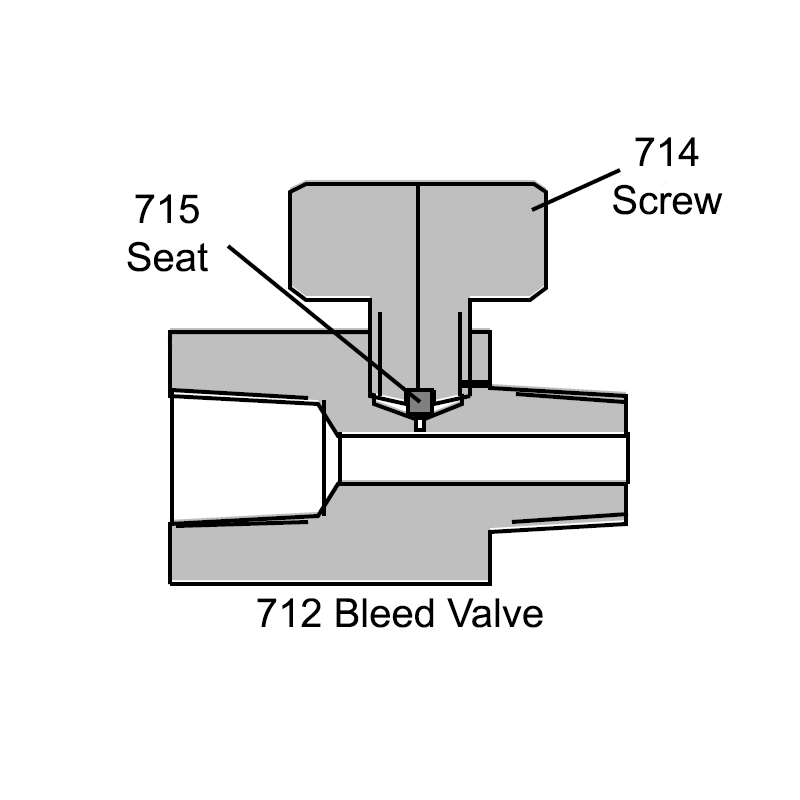

Aluminum inline hand operated bleed valve. Maximum pressure: 6000 psi (414 bar). Bleed valves are designed to vent high pressure or condensate from charging lines, filters, separators and other volumes where pressure must be relieved to disconnect lines, tanks, etc. They have an exclusive seal design that permits opening and closing thousands of times without loss of sealing ability. The 712 has two connections making it better suited for inline uses.

Type Inline hand operated bleed valve
Maximum Rated Pressure 6000 psi (345 bar)
Inlet Port Size 1/4 in FNPT - interchangeable with outlet port, functions same either direction
Outlet Port Size 1/4 in MNPT - interchangeable with inlet port, vents to atmosphere
Outlet Pressure Rating Atmosphere
Flow Coefficient (Cv) 0.06 in diameter orifice
Leakage Bubble Tight
Weight 2.2  oz (60 g)
Overall Length 2 in
Hex Diameter 1 in
Minimum Temperature -100ºF
Body Material Anodized aluminum
Seal Materials Teflon

Typical Applications

  • Bleed valves on charging lines
  • Bleed valves on lines at air fill stations
  • Bleed valves on filter to permit filter changing
  • Drain valves on separators
  • Pressure bleed to permit disconnecting O-ring sealed fittings
