SpaceSaver 2 Cylinder Cascade Filling Station

SpaceSaver® units are designed for both mobile and standalone SCBA and scuba cylinder filling. This two cylinder unit can be incorporated directly onto fire and emergency vehicles or as a fixture in any cylinder filling location. SpaceSaver units will contain cylinders and any metal fragments in the event of a rupture during the filling process.Tested and certified for all 5500 psi SCBA bottles.


SpaceSaver® Model 100A is designed to allow the filling of two (2) SCBA or scuba cylinders simultaneously or individually. Combined with our versatile air control panel, this unit can be customized to fit your specific needs. SpaceSaver installation services is available at Nuvair’s California production facility. Manufactured by Resolve Specialty Products, LLC.


  • Body constructed with 3/16 in and 3/8 in plate steel for maximum safety and protection from rupture.
  • Door constructed with 1/4 in stainless steel.
  • Ergonomic design with assistance devices to assure smooth operation and reduce operator fatigue.
  • Automatic safety interlock system prevents operation until unit is secured.
  • Most space efficient single cylinder filling station now available.
  • Certified to fill up to 88 cu ft air cylinders.
  • Optional air control panel can be mounted on either side of the unit or remotely.
  • Fully tested and certified for all 5500 psi SCBA bottles.
  • Warranty: One (1) year from date of start-up (not to exceed fifteen [15] months from shipment) on the complete package.


  • Length: 13 in (33 cm)
  • Width: 23 in (58 cm)
  • Height: 42.5 in (108 cm)
  • Weight: 400 lbs (181 kg)

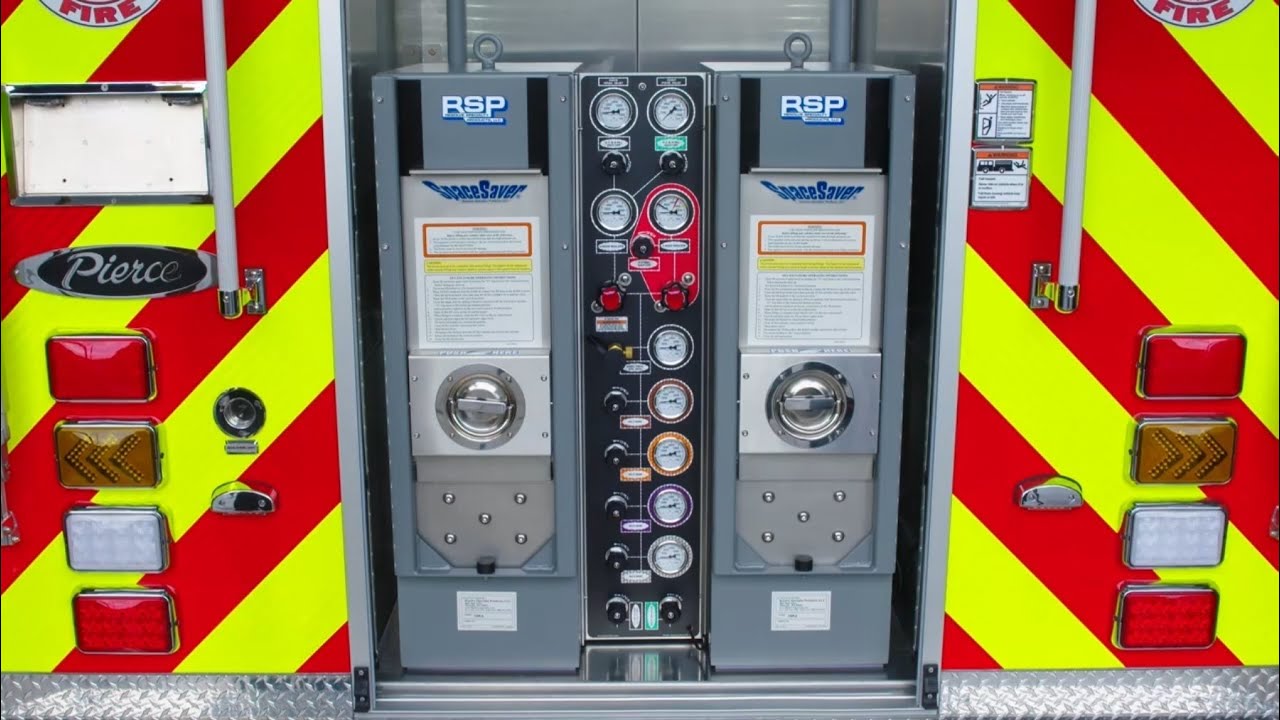

Some images of the Model 100A is shown with optional equipment.
