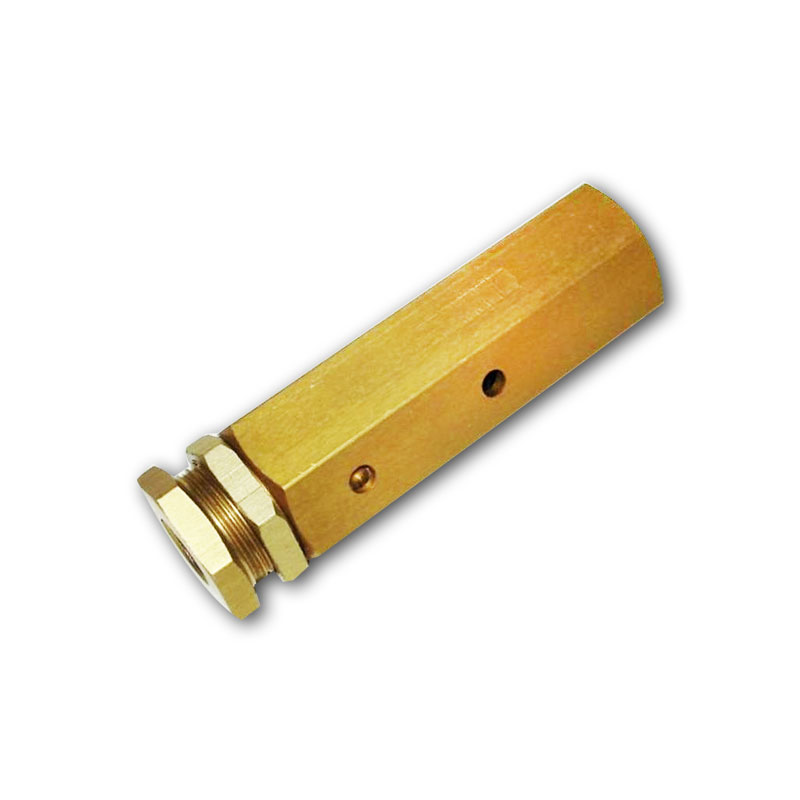

Inline Reducing Regulator 6000 psi In > 100–300 psi Out
$112.00
The Aqua Environment model 1247 is a small, piston type, suitable for in-line mounting. Although the outlet pressure is adjustable it is primarily used in application where it is preset and not adjusted in the field. It has one inlet and one outlet port. Maximum inlet pressure in 6000 psi. Outlet pressure range: 100–300 psi (7–21 bar). The regulator is self venting when outlet pressure exceeds set pressure by 20 to 40%. It offers an economical way to provide low pressure service air from a high pressure storage system or compressor.
SKU
1247-2
Specifications
| Type | In-line reducing regulator |
| Maximum Rated Pressure | 6000 psi (414 bar) |
| Outlet Pressure Range | 100–300 psi (7-21 bar) |
| Outlet Pressure Rating | 1000 psi (69 bar) |
| Flow coefficient (Cv) | 0.03 (equals 0.04 inch orifice) |
| Outlet Pressure Variation with Inlet Pressure |
8 psi drop/1000 psi inlet drop |
| Weight | 5.3 oz (150 g) |
| Overall Length | 3.75" |
| Hex Diameter | 1" |
| Minimum Temperature | -15°F (-26°C) |
| Inlet Port Size | 1/4" FNPT |
| Outlet Port Size | 1/4" FNPT |
| Body Material | Anodized Aluminum |
| Internal Materials | Brass Steel Spring |
| Seal Materials | Buna-N Delrin Viton |
Typical Applications
- Component testing
- Air tank fill stations to eliminate need of low pressure compressors and storage
- Firefighting air stations to provide tire inflating air
- Instrumentation and calibration of panels
- Process industry control
- Aircraft service carts to eliminate need for low pressure compressor
- Low pressure air to operate high pressure operated valves
