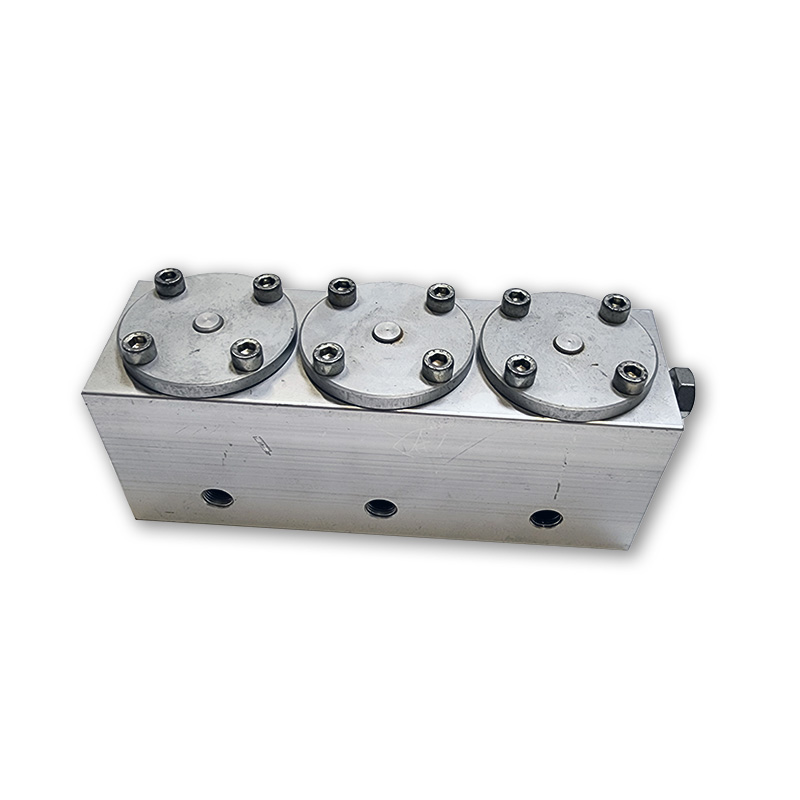

Built for MCH13-MCH16 compressors manufactured before 01/2017. Described by Coltri as "CONDENSATE DISCHARGE VALVE [KIT BLOCCHETTO VALVOLA SCARICO CONDENSA]". See "Note to Customers," below.
For Coltri compressors built prior to 01/2017. Four (4) bolt holes for mounting on the bottom. Some blocks do not have poppet 36-05-066. Compact MCH13-16 require 9-port block.
This part contains the following components:
(12) 36-07-070 · SCREW TCEIZN M5x10-8.8 MCH36 1,00 [VITE TCEIZN M5x10-8.8 MCH36]
(3) 13-00-0506 · CONDENSATE DISCHARGE BODY VALVE CAP 20,00 [COPERCHIO CORPO VALVOLA SCAR.]
(3) OR-2118 · O RING 2118 70-75 SH (29.87x1.78) 1,00 [O RING 2118 70-75 SH (29.87x1.78)]
(3) OR-2018 · O RING 2018 70-75 SH (4,48X1,78) 2,00 [O RING 2018 70-75 SH (4,48X1,78)]
(3) 13-00-0507/A · CONDENSATE DISCHARGE VALVE PISTON 25,00 [PISTONE CIECO VALV. SCAR.CONDENSA 3 VIE]
(3) OR-2100 · O RING 2100 NBR 70SH 2,00 [O RING 2100 NBR 70SH]
(3) SC000337/C/R · PRESSURE REDUCER BODY INPUT 300/200BAR 45,00 [RACC. CORPO INPUT RIDUTT. DI PRESS. 300/200 BAR]
(1) 13-00-0505/N · CONDENSATE DISCHARGE BODY VALVE MCH13-16 [CORPO VALVOLA SCARICO CONDENSA 3 VIE MCH13/16 50X60]
Depending on the age and type of your Coltri compressor, there are different versions of this same part number in stock at Nuvair that have complex variations that make the replacement part difficult to identify. For this reason, and while different versions of 13-00-0505/N/R are in stock and ready to ship, we do not offer this part for sale online for this reason. If you find that you required this replacement part, we ask that you consult our publication posted under "Technical" tab (above) first. Second, please take photos of your auto drain assembly and the serial number plate of your compressor. Third, contact the Nuvair sales team for ordering assistance by email, making sure to attach the requested photos. Please do not connect with us via chat as it is an ineffective communications method for parts identification like this.
Nuvair is an Authorized Coltri Distributor
Nuvair sells only genuine parts and equipment manufactured by Coltri Compressors. Do not be fooled by cheap aftermarket copies of original Coltri equipment. Items labeled “replacement,” “OEM equivalent,” “compatible,” or “alternative” are not manufactured by Aerotenica Coltri S.p.a.
Some Coltri parts are not available for purchase online. To ensure this genuine Coltri part fits your compressor model/version, please contact the Nuvair sales team for ordering assistance.
