Back Pressure Regulator 1/4" FNPT Brass · Low Temperature
$216.00

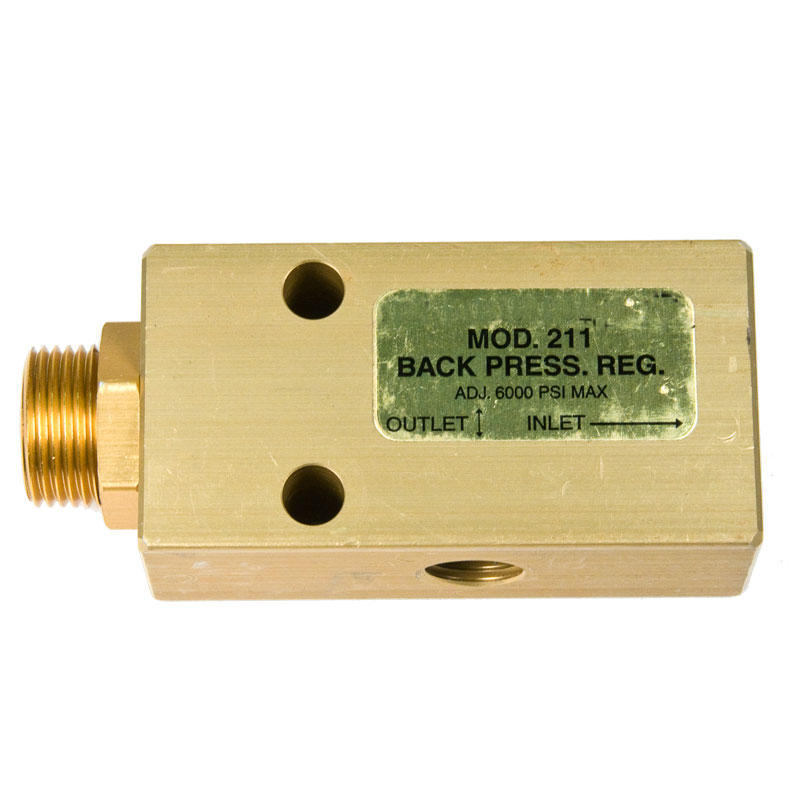

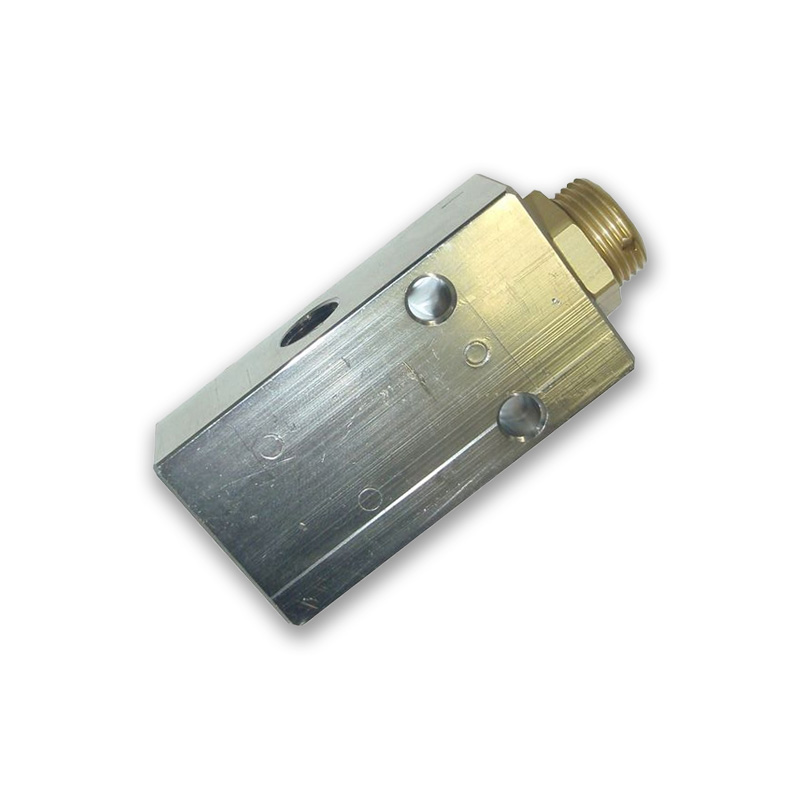

Aqua Environment nickel plated brass back pressure regulator, 1/4" FNPT. Maximum rated pressure: 6000 psi (414 bar). Outlet pressure adjustment range: 300-5000 psi (21-345 bar). Specially designed for low temperature service (–50°F | –46°C). The set pressure can be adjusted by loosening the jam nut and turning the adjusting screw.
SKU
211-B-L
This is a special order item and may take 1-2 weeks for delivery. Contact the Nuvair sales team for estimated lead times.
Also known as a priority valve, the model 211 is a fully balanced, economical regulator. It serves a wide variety of uses, however its main use is on small compressors. The regulator will improve moisture separator efficiency and filter life as much as 450%. This is done by maintaining pressure in the separator and filter at 1800 psi or more when tank pressure is lower. It has two outlet ports permitting attachment of a filling yoke and gauge directly to the regulator. This eliminates costly fittings.
Specifications
| Type | Back pressure regulator |
|---|---|
| Maximum Rated Pressure | 6000 psi (40 MPa) |
| Outlet Pressure Setting Range/Adjustment Range | 300-5000 psi (21-345 bar) |
| Inlet Port Size | 1 ea 1/4" FNPT |
| Outlet Port Size | 2 ea 1/4" FNPT |
| Outlet Pressure Rating | 6000 psi (414 bar) |
| Flow Capacity | 2 to 50 SCFM |
| Leakage | Zero external; 0.05 SCFM internal |
| Weight | 19.2 oz (545 g) |
| Size (L x W x H) | 3.7 x 1.5 x 1" |
| Minimum Temperature | –50ºF (–46ºC) |
| Body Material | Nickel Plated Brass |
| Internal Materials | Brass Stainless |
| Seal Materials | Nitrale |
| Flow Coefficient (Cv) | 0.15 |
| Speical Notes | NOT OXYGEN CLEANED |

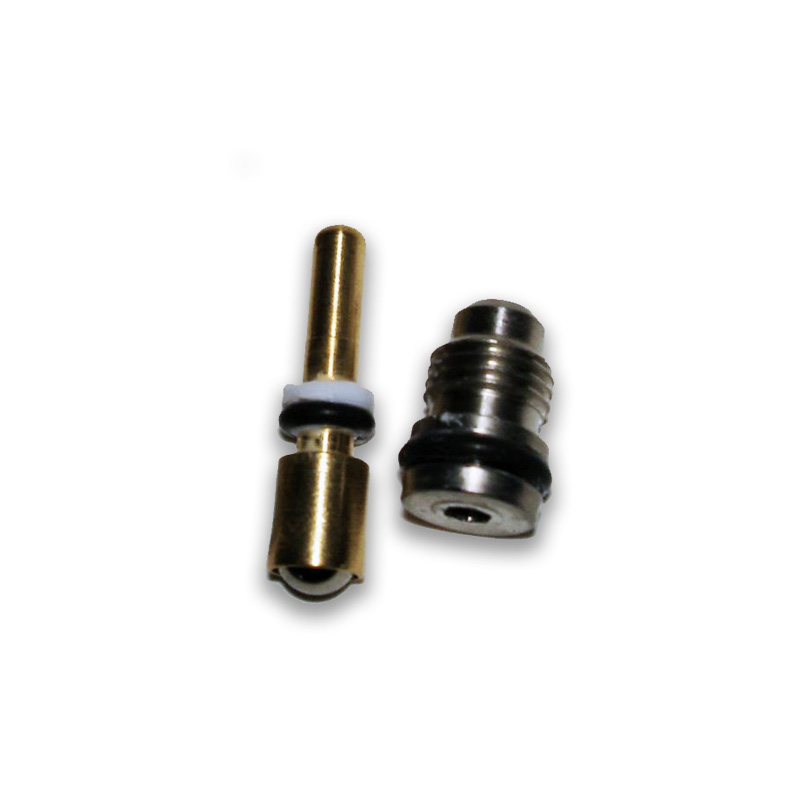

| Service/Repair Kit | 211-L-12 |
Typical Applications
- Separator and filter systems
- Compressors
- Control systems
- Cascading systems
