Reducing Regulator 6000 psi In > 0–1500 psi Out Aluminum · Low Temperature
$333.00
Aqua Environment aluminum reducing regulator. 1/4" FNPT fittings. Maximum rated pressure: 6000 psi. Outlet pressure range: 50–1500 psi. Specially designed for low temperature service (–60°F | –51°C). The model 415 is a piston type, hand load regulator that uses an unbalanced poppet design for ruggedness and simplicity. There is a small variation of control pressure with changing inlet pressure as noted in the specifications. A 30 micron filter in the poppet cartridge helps prevent damage by contaminants.
SKU
415-1500-L
This is a special order item and may take 1-2 weeks for delivery. Contact the Nuvair sales team for estimated lead times.
Typical Applications
- Component testing
- Air tank fill stations
- Firefighting air systems
- Instrumentation and calibration panels
- Process industry control
- Shipboard and offshore air and gas control
- Aircraft service equipment
- Electronic industry rare gas flow
- Vehicle CNG stations
Specifications
| Type | Reducing Regulator |
| PSI Out | 0 to 1500 psi |
| Hand Loaded/Operated or Dome/Air Operated | Hand/Spring Loaded |
| Maximum Rated Pressure | 6000 psi |
| Outlet Pressure Range | 50–1500 psi |
| Outlet Pressure Rating | 6000 psi |
| Inlet Port Size | 2 ea 1/4" FNPT (One Gauge, One Inlet) |
| Outlet Port Size | 2 ea 1/4" FNPT (One Gauge, One Outlet) |
| Flow Coefficient (Cv) | 0.06 (equals 0.07 in orifice) |
| Outlet Pressure Variations with Inlet Pressure Variations | 22 psi rise/1000 psi inlet drop |
| Leakage | Bubble tight |
| Weight | 710 g |
| Overall Length | 5.5" |
| Round Diameter | 2.25" |
| Minimum Temperature | –60°F (–51°C) |
| Body Materials | Anodized aluminum |
| Internal Materials | Anodized aluminum, Brass, Stainless |
| Seal Materials | Kel-F, Nitrile |
| Special Note | Not oxygen cleaned |
| Accessories | Mount Ring (SKU 657) |

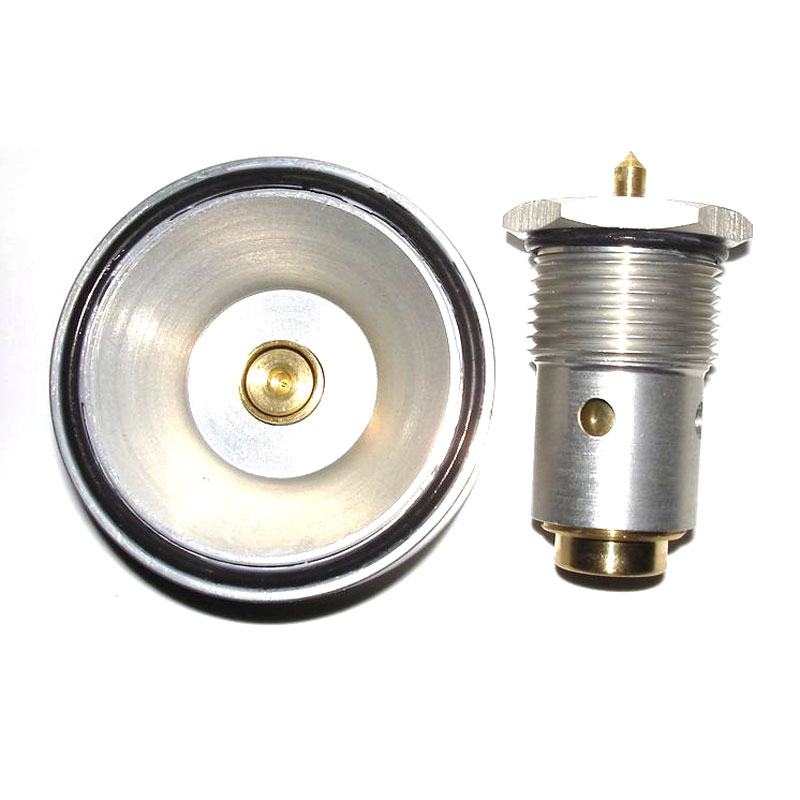

| Service/Repair Kit | 839-5000-L |
