Aluminum Reducing Regulator: 6000 psi In > 50–400 psi Out

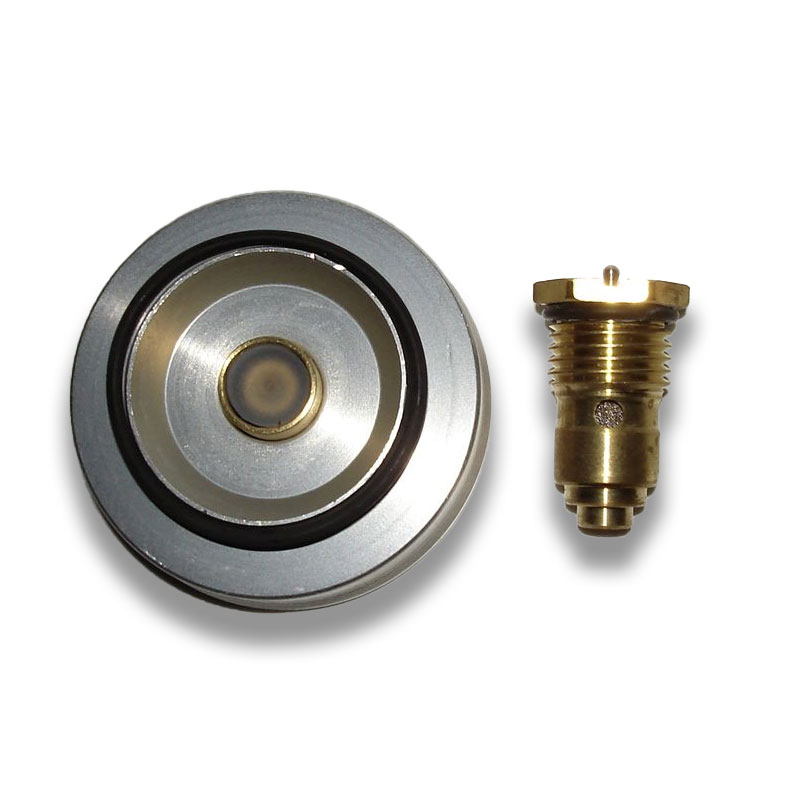

Aluminum reducing regulator. 1/4 in FNPT fittings. Outlet pressure range: 50–400 psi. Maximum rated pressure: 6000 psi. The model 415 is a piston type, hand load regulator that uses an unbalanced poppet design for ruggedness and simplicity. There is a small variation of control pressure with changing inlet pressure as noted in the specifications. A 30 micron filter in the poppet cartridge helps prevent damage by contaminants.


Typical Applications

  • Component testing
  • Air tank fill stations
  • Firefighting air systems
  • Instrumentation and calibration panels
  • Process industry control
  • Shipboard and offshore air and gas control
  • Aircraft service equipment
  • Electronic industry rare gas flow
  • Vehicle CNG stations


Type Reducing Regulator
Hand Loaded/Operated or Dome/Air Operated Hand/Spring Loaded
Maximum Rated Pressure 6000 psi
Outlet Pressure Range 50–400 psi
Outlet Pressure Rating 6000 psi
Inlet Port Size 2 ea 1/4 in FNPT (One Gauge, One Inlet)
Outlet Port Size 2 ea 1/4 in FNPT (One Gauge, One Outlet)
Flow Coefficient (Cv) 0.06 (equals 0.07 in orifice)
Outlet Pressure Variations with Inlet Pressure Variations 6 psi rise/1000 psi inlet drop
Leakage Bubble tight
Weight 25 oz (710 g)
Overall Length 5.5 in (13.97 cm)
Round Diameter 2.25 in (5.715 cm)
Minimum Temperature -15ºF (-26°C)
Body Materials Anodized aluminum
Internal Materials Anodized aluminum, Brass, Stainless
Seal Materials Kel-F, Viton
Special Note Not oxygen cleaned
