Tubing for Nuvair Pro Analyzer Flow Adapter Cap

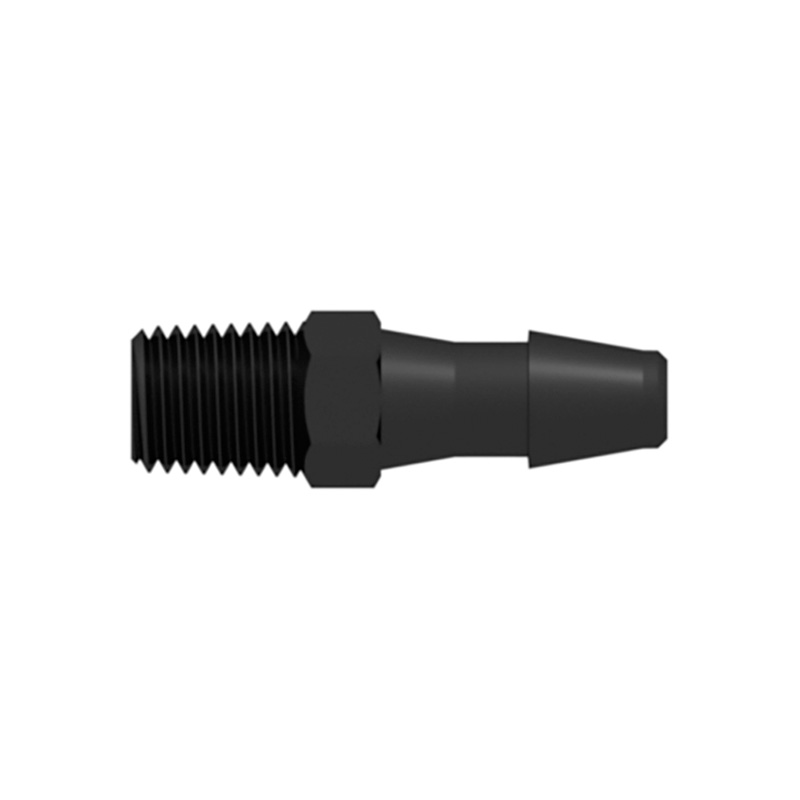

Industrial grade tubing used to connect Nuvair Pro Analyzer Flow Adapter Cap (SKU BPM6) to other devices including the 400 Series Calibration Test Gas Regulator (SKU 400-100). 3/16 in ID × 5/16 in OD × 1/16 in. Hose Barb Fitting for Pro Analyzer Flow Adapter Cap (SKU 5463K369) required to connect SKU BPM6 to hose. All items sold separately. Sold by the foot (30.48 cm).


This product is sold by the foot (30.48 cm). If you would like a total of 3 ft (0.91 m), please order a quantity of "3".

This tubing outperforms other general-purpose tubing like neoprene and EPDM. Numerous applications including gaskets, abrasion-resistant sleeves, and cable insulations.

  • Will not weaken or crack
  • Excellent resistance to inorganic fluids
  • UV & ozone resistant
  • Durometer hardness (shore A): 61
  • Temperature range: -75°F to 275°F
  • Maximum pressure rating @ 73°F: 13 psi (8 psi @ 180°F)
  • Minimum bend radius: 3/4"
  • Vacuum rating @ 73°F & 180°F: 29.9 in. Hg
