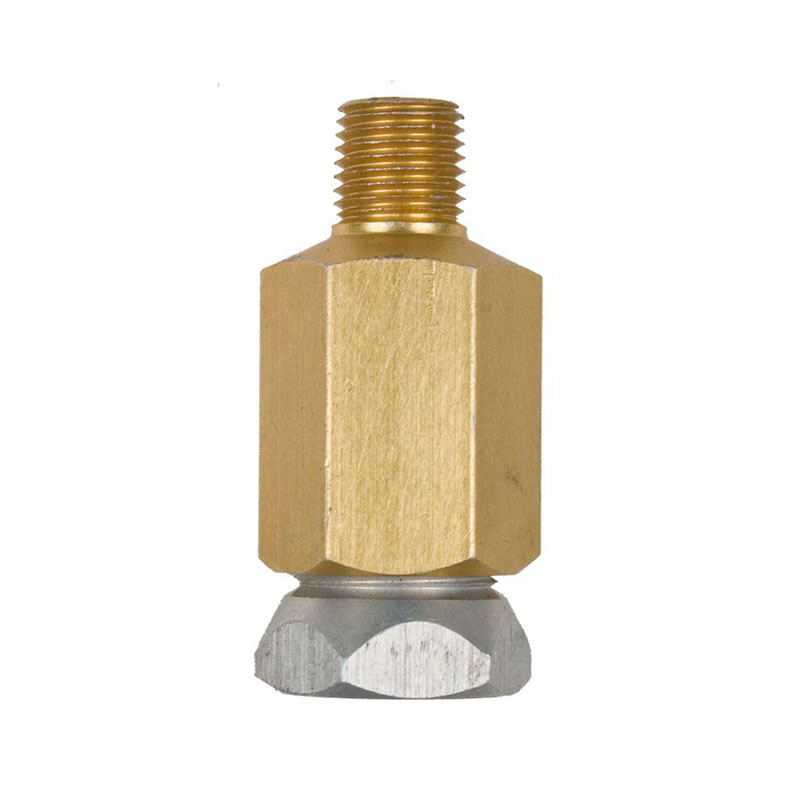

Check Valve 6000 psi 1/4" MNPT > 1/4" FNPT Flow
$52.00
Aqua Environment check valve with male to female flow, 1/4" NPT. Maximum pressure: 6000 psi (345 bar).
SKU
955
Specifications
| Type | Check valve |
|---|---|
| Maximum Rated Pressure | 6000 psi (345 bar) |
| Special Features | Male to female flow |
| Inlet Port Size | 1/4" MNPT |
| Outlet Port Size | 1/4" FNPT |
| Outlet Pressure Rating | 6000 psi (345 bar) |
| Flow Coefficient (Cv) | 0.21 (0.15 in orifice) |
| Leakage | Bubble Tight |
| Weight | 2.5 oz (70 g) |
| Overall Length | 2.4" |
| Hex Diameter | 1" |
| Minimum Temperature | -15ºF |
| Body Material | Anodized aluminum |
| Internal Materials | Brass Stainless |
| Seal Materials | Viton |
| Special Notes | Open pressure: 5 to 10 psi |

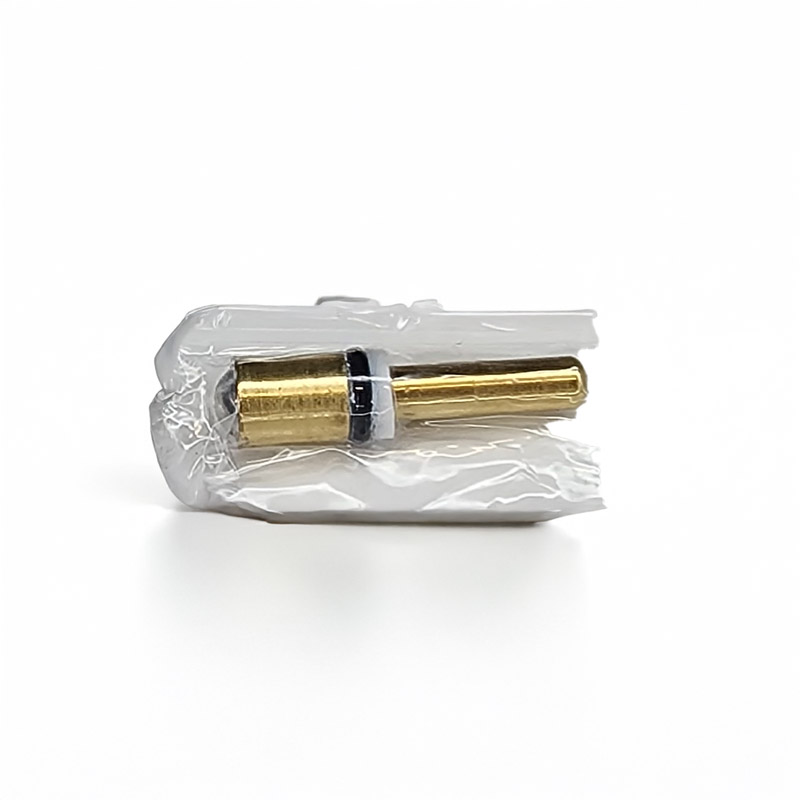

| Service/Repair Kit | SKU 955-8 |
