Fill Containment Station Door Air Switch
$156.00

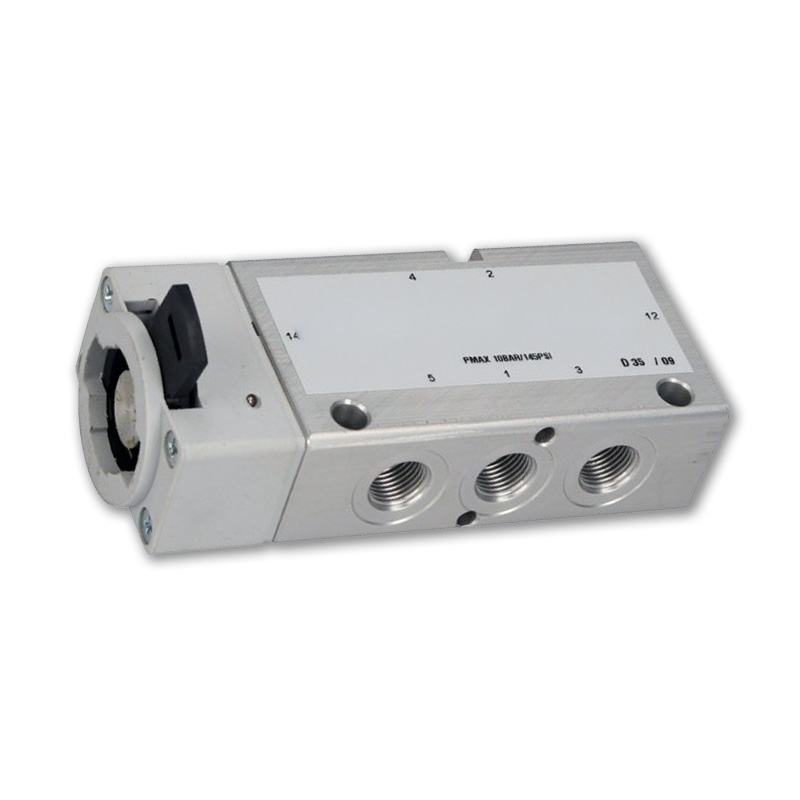

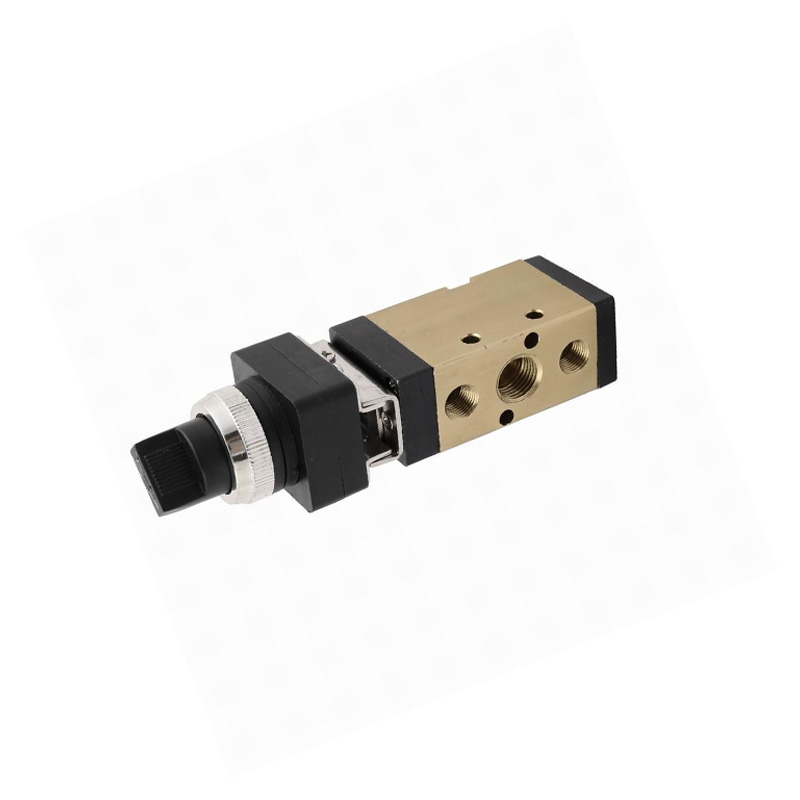

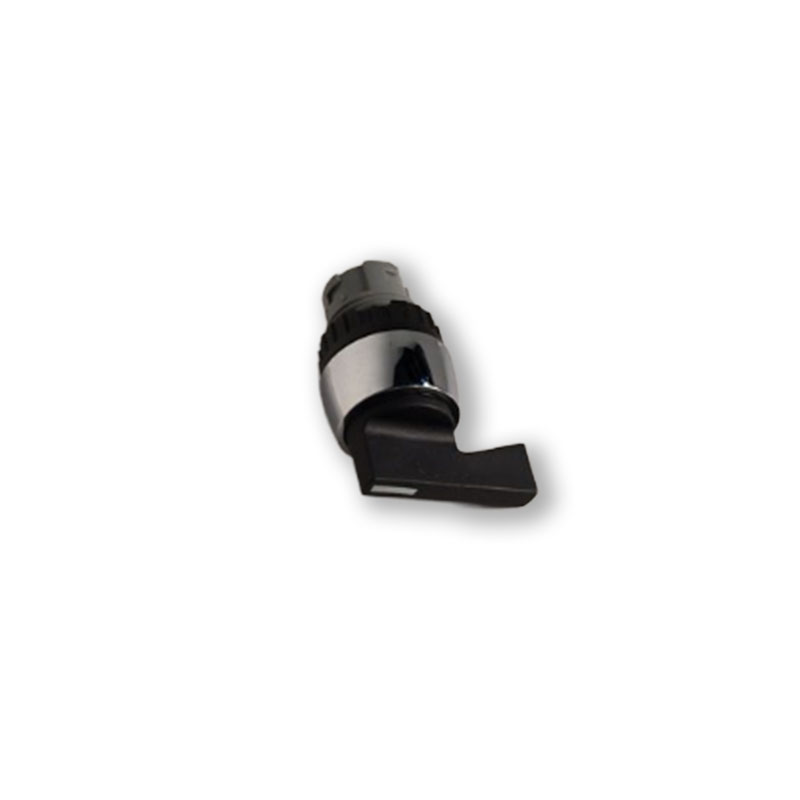

4-Way, 5-Port, 2-Position switch valve used to control pneumatic doors on Nuvair fill containment stations. Replaces component parts KX9356 and PA10320.
Hand operated pneumatic valve with two position switch. Manual pneumatic directional valve with a four-way operation and five ports (P = Pressure, A = Outlet 1, B = Outlet 2, EA = Exhaust for port A, EB = Exhaust for port B). Four-way, two-position valves are generally used to fully extend and retract a double acting cylinder, or in applications with similar operation. 1/4" NPT two-position detented switch. Pushlock fittings not included.
SKU
86522TB
Specifications
| Operation | 4-Way, 5-Port, 2-Position Switch |
|---|---|
| Type | Hand operated directional air valve |
| Port Size | 1/4" NPT (1/8" NPT exhaust ports) |
| Operating Pressure | 0–116 psi |
| Operating Temperature | 14 to 140°F (-10 to 60°C) |
| Action | Direct acting |
| Flow Coefficient (Cv) | 0.89 |
| Working Medium | 40 micron filtered air or inert gas |
| Body Material | Anondized aluminum |
| Seal Material | NBR (Buna N) |
| Button Material | ABS |
| Lubrication | Not required |
