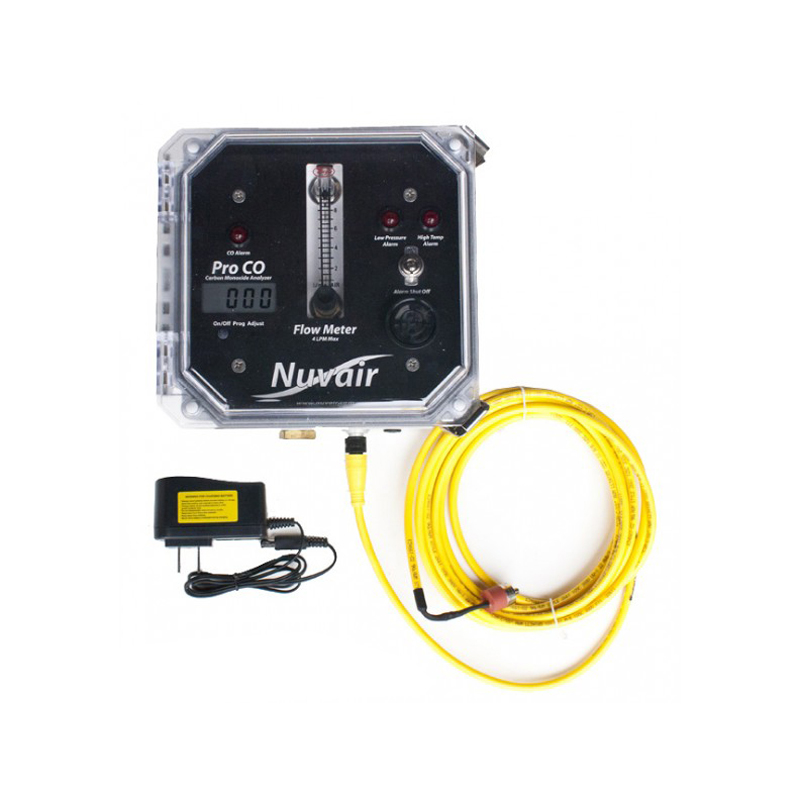

Pro CO Analyzer with Low Pressure/High Temp Alarms & Flow Meter
This Pro CO Alarm analyzer combines carbon monoxide detection, a low-pressure alarm, an external high-temperature sensor, and a flow meter into a single unit. Optional regulator on input available. The included SPDT relay cable (10A @ 230VAC/30VDC ampacity) can connect to auxillary equipment to trigger external alarms, emergency backup systems, or compressor shutdown. Components are mounted in a water- and impact-resistant case with a clear cover that is compatible with outdoor and marine environments.
This version of the Pro CO Alarm analyzer detects:
(1) CO in air flow from an operating compressor in excess user-defined set points
(2) Compressor air outlet temperatures in excess of 350°F/177°C
(3) Low air supply pressure, factory set at 100 psi (7 bar)
Similar to SKU 9621, the 9621F Series is equipped with a flow meter. Choose from the standard model (SKU 9621F-LB) or add a low pressure/high pressure (LP>HP) regulator on input (9621F-HP-LB).
If the analyzer readings fall outside of alarm set points, a relay sounds a piezo alarm and illuminates one of three panel LEDs (one each for CO, temperature and pressure). This same relay (10A @ 230VAC/30VDC ampacity) can activate an external relay to automatically shut down compressors, sound an external alarm or activate emergency backup systems.
The system includes an external temperature sensor with 12-feet of cabling, an externally mounted calibration gas inlet and exhaust port.
Features
- Compressor mounted instrument
- LCD display
- On/Off switch
- Rugged weatherproof housing
- Low maintenance required
- Low power consumption
- Battery test function
- Audible and visual alarms
- Cable relay for optional auxiliary equipment control
- Flow meter
Option
- High pressure/low pressure (HP>LP) regulator on input
Specifications
| Flow Rate | 0.5-1 L/min |
| Resolution | 1 ppm CO |
| Repeatability | <+5% |
| Accuracy | ±5% |
| Sensor Type | Electrochemical (CO) |
| Expected Sensor Life | >24 months in normal use from date of manufacture (CO) |
| Range | 0-50 ppm CO |
| Alarms | • Two user-programmable audible and visual CO alarms • High temperature alarm at 350°F (177°C) • Low pressure alarm at 100 psi (7 bar) |
| SPDT Relay Ampacity |
10A @ 230VAC/30VDC |
| Response Time | <50 seconds over complete temperature range (CO) |
| Operating Temperature | 14° to 122°F (-10° to 50°C) continuous -4° to 122°F (-20° to 50°C) intermittent |
| Operating Humidity | Non-condensing: 15-90% continuous; 0-99% intermittent |
| Storage Temperature | 14° to 140°F (-10° to 60°C) |
| Power | Rechargeable Lithium Battery |
| Dimensions (L x W x H) |
7.41 × 7.79 × 4.31 in (18.8 × 19.8 × 10.9 cm) |
| Weight | 7.8 oz (0.22 kg) |
| Warranty | 12 months |
| Replacement Sensor | SKU 9501 |
WARNING: Never expose gas sensors to pressure or you may cause damage and/or false readings. Damaged sensors will not provide accurate gas analysis. Most gas analyzers can be used to analyze a regulated gas sample flow, the contents of a gas cylinder, or the flow from a regulator. The flow rate of gas must equal 1-5 L/min. To produce this flow, a Flow Restrictor and Regulator may be required. A faulty Flow Restrictor can lead to a false analyzer reading. Flow Restrictors should be regularly tested with a Flow Meter. Inaccurate gas analysis can lead to serious personal injury or death.
