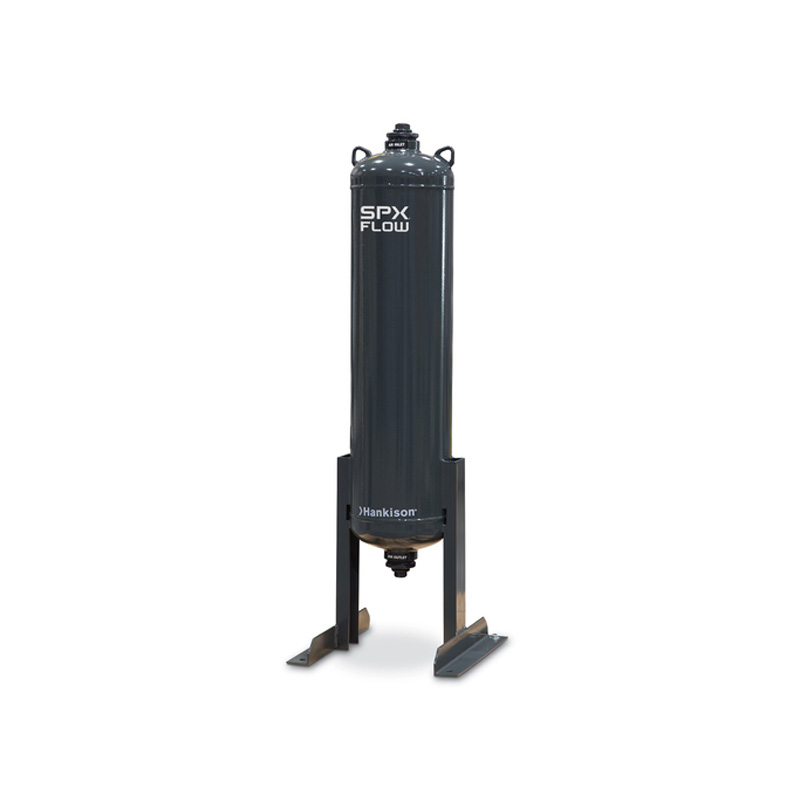

SPX Hankison Activated Carbon Adsorber Towers
Activated Carbon Adsorber Towers (ACAT) from SPX Flow® Hankison® help protect downstream equipment by removing oil vapor from the air. Available in 17 model sizes with flow ratings ranging from 60 to 5500 SCFM.
SKU
ACAT Series
Specifications
| SKU | Model Size | Flow Rating (SCFM) |
Connection (in) |
Design Pressure (psi) |
Design Temp (°F) |
Height (in) |
Width (in) |
Depth (in) |
Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| AT-4-AC-0 | 4 | 60 | 1-1/2 NPT | 250 | 120 | 70 | 10 | 24 | 68 |
| AT-5-AC-0 | 5 | 80 | 3/4 NPT | 250 | 120 | 72 | 11 | 24 | 89 |
| AT-6-AC-0 | 6 | 78 | 15 | 16 | |||||
| AT-8-AC-0 | 8 | 190 | 1-1/2 NPT | 250 | 120 | 61 | 17 | 18 | 157 |
| AT-10-AC-0 | 10 | 350 | 1-1/2 NPT | 200 | 120 | 64 | 20 | 20 | 201 |
| AT-12-AC-0 | 12 | 500 | 2 NPT | 200 | 120 | 65 | 22 | 22 | 271 |
| AT-14-AC-0 | 14 | 600 | 3 FLG | 200 | 120 | 69 | 25 | 25 | 353 |
| AT-16-AC-0 | 16 | 800 | 3 FLG | 200 | 120 | 71 | 27 | 27 | 415 |
| AT-18-AC-0 | 18 | 1000 | 4 FLG | 200 | 120 | 72 | 29 | 29 | 474 |
| AT-20-AC-0 | 20 | 1250 | 4 FLG | 200 | 120 | 73 | 31 | 31 | 604 |
| AT-22-AC-0 | 22 | 1500 | 4 FLG | 200 | 120 | 73 | 33 | 33 | 662 |
| AT-24-AC-0 | 24 | 1800 | 4 FLG | 180 | 120 | 74 | 35 | 35 | 741 |
| AT-26-AC-0 | 26 | 2100 | 4 FLG | 200 | 120 | 80 | 37 | 37 | 1136 |
| AT-30-AC-0 | 30 | 2800 | 4 FLG | 200 | 120 | 79 | 42 | 42 | 1279 |
| AT-36-AC-0 | 36 | 4000 | 6 FLG | 200 | 120 | 83 | 48 | 50 | 1840 |
| AT-42-AC-0 | 42 | 5500 | 6 FLG | 180 | 120 | 74 | 55 | 54 | 2578 |
Please contact the sales team for estimated lead times.
Nuvair is an Authorized Hankison® Distributor
Nuvair sells only genuine parts and equipment manufactured by SPX Flow Hankison®. Do not be fooled by cheap aftermarket copies of original Hankison® equipment. Items labeled “replacement” or “alternative” are not manufactured by SPX Flow Hankison®.
Check items to add to the cart or
