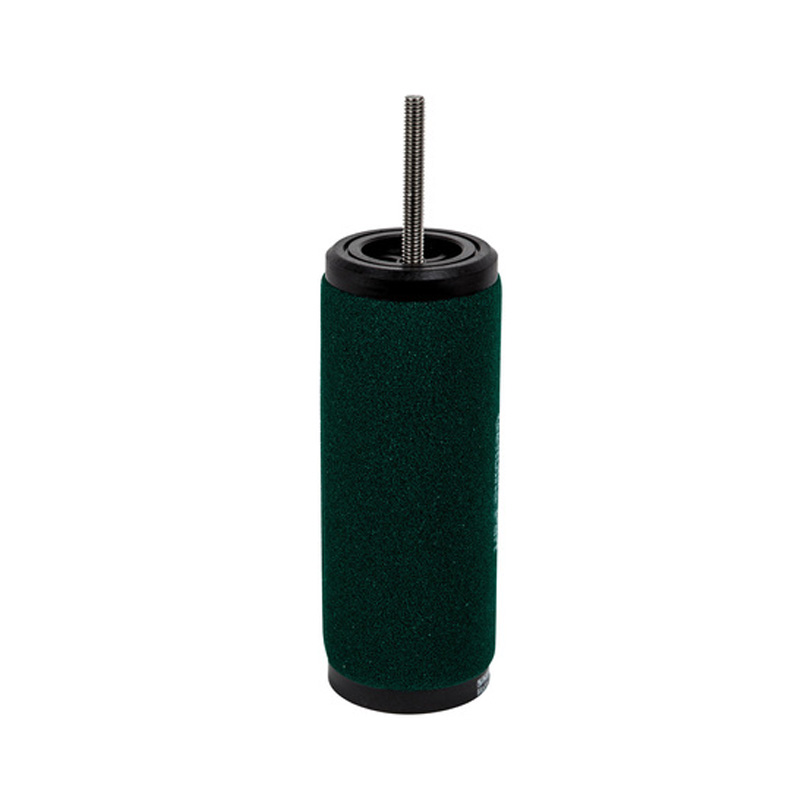

E1-20 Replacement Filter Element
Grade 1 Filter: Oil Vapor Removal Filter. Removes oil and hydrocarbon vapors normally adsorbed by activated carbon. Removes solid particulate to 0.01 microns with a 0.003 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF500 and is based on 100°F inlet temperature). Designed for a 1000-hour life at the rated conditions. Multiple layers of fiber media and screen remove larger particles, pre-filtering the air in the first stage of filtration. In the second stage, multiple layers of bonded, blended fiber media is utilized for fine coalescence. Multiple layers of fine media prevent particle migration.
- Buy 6 for $84.79 each and save 15%
- Buy 10 for $79.80 each and save 20%
Quality aftermarket replacement filter manufactured by Walker Filtration. Walker Filtration is a world-class manufacturer of air oil separator elements (oil mist filters) for use in oil lubricated vacuum pumps and compressors. Manufacturing in excess of 1 million oil separator elements (OSEs) each year for use across a wide range of industries and applications, Walker Filtration’s oil mist separator and coalescing technology uses specialized materials that enable the most stringent of performance specifications to be achieved for both general and special applications including those requiring ATEX approval and certification.
Features
| Withstands temperatures to 150°F (66°C) |
| Push-on elements provide simple replacement |
| Piston type seals keeps unfiltered air from bypassing element |
| Stainless steel, corrosion resistant inner and outer core > Low resistance to flow > Seam welded durability |
| Matrix blended fiber media > Large, effective surface area ensures high efficiencies and minimizes pressure drop |
| Coated, closed cell foam sleeve > Resists chemical attack from oils and acids > Ensures high efficiencies by preventing re-entrainment of coalesced liquids |
| Chemically resistant end caps |
| Silicone free |
Specifications
| Model Size | 20 |
|---|---|
| Filter Element Grade | 1: Oil Vapor Removal |
| Model | E1-20-W |
| Stainless Steel Element | NO |
| Flow Rating | 60 SCFM |
| Design Temp | 150°F |
| Weight | 0.4 lbs |
Nuvair is an Authorized Walker Filtration Distributor
Nuvair sells only genuine parts and equipment manufactured by Walker Filtration. ISO 9001 accredited, Walker Filtration designs, develops, and manufactures high quality compressed air filtration, vacuum air/oil separation, and drying solutions for a wide range of industrial and medical applications on a global scale.
Some Walker Filtration parts are not available for purchase online. To ensure this genuine Walker Filtration part fits your compressor model/version, please contact the Nuvair sales team for ordering assistance.
