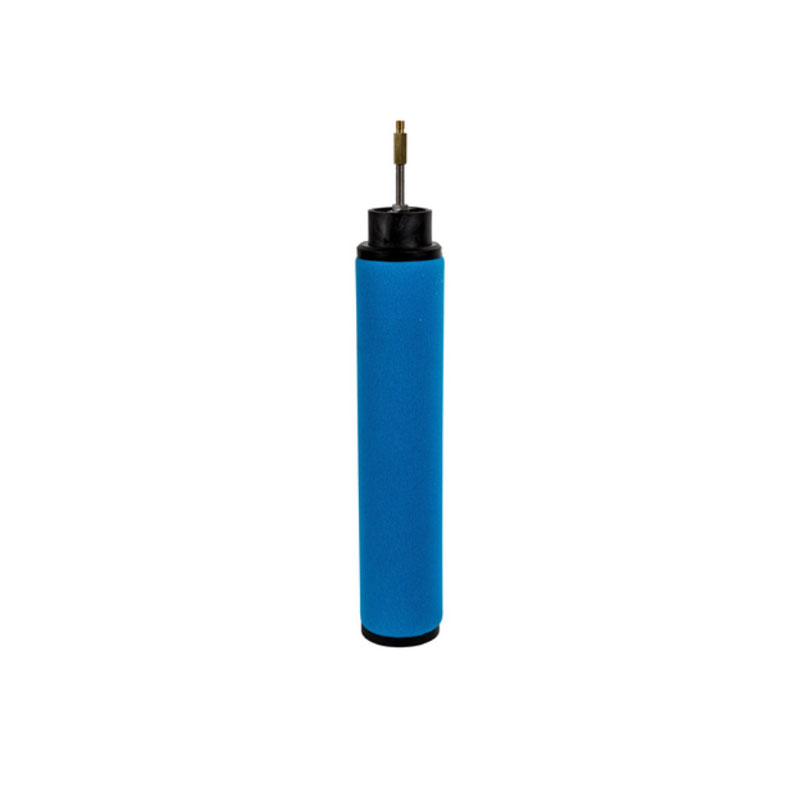

Hankison E3-20-05 Filter Element
Grade 3 Filter: Maximum Efficiency Oil Removal Filter. Designed for coalescing ultrafine aerosols. Ultrafine coalescer delivers oil-free air for critical applications including conveying, electronics manufacturing, and nitrogen replacement. Removes 99.9999+% of solids 0.01 micron and larger. Solid particles: Class 1. Remaining oil content: Class 1. Maximum remaining oil content¹: 0.0008 ppm w/w. First stage: coated closed-cell foam sleeve acts as prefilter and flow dispenser. Second stage: multiple layers of matrix blended fiber media for ultra-fine coalescence.
- Buy 6 for $154.02 each and save 15%
- Buy 10 for $144.96 each and save 20%
Nuvair is an Authorized Hankison® Distributor
Nuvair sells only genuine parts and equipment manufactured by SPX Flow Hankison®. Do not be fooled by cheap aftermarket copies of original Hankison® equipment. Items labeled “replacement” or “alternative” are not manufactured by SPX Flow Hankison®.
Features
| Withstands temperatures to 150°F (66°C) |
| Push-on elements provide simple replacement |
| Piston type seals keeps unfiltered air from bypassing element |
| Stainless steel, corrosion resistant inner and outer core > Low resistance to flow > Seam welded durability |
| Matrix blended fiber media > Large, effective surface area ensures high efficiencies and minimizes pressure drop |
| Coated, closed cell foam sleeve > Resists chemical attack from oils and acids > Ensures high efficiencies by preventing re-entrainment of coalesced liquids |
| Chemically resistant end caps |
| Silicone free |
Specifications
| Model Size | 20 |
|---|---|
| Filter Element Grade | 3: Maximum Efficiency Oil Removal Filter |
| Model | E3-20-05 |
| Stainless Steel Element | NO |
| Weight | 0.4 lb |
¹Filter efficiency has been established in accordance with CAGI standard ADF400 and is based on 100°F (38°C) inlet temperature.
