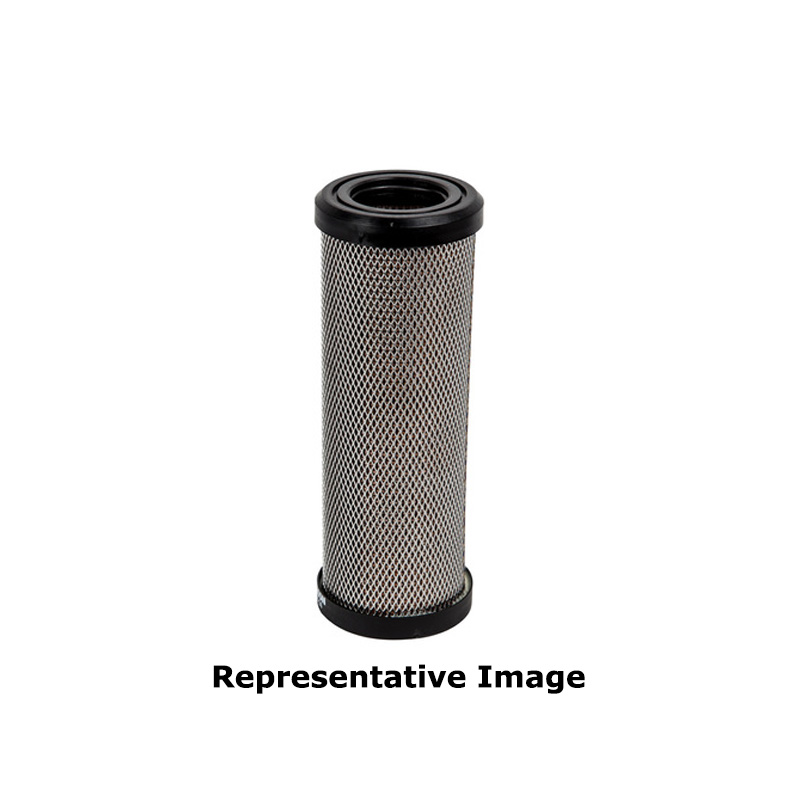

E5-24 Replacement Filter Element
Grade 5 Filter: High Efficiency Oil Removal. Designed for coalescing fine water and oil aerosols, this filter removes solid particulate to 0.01 microns with a 0.008 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF400 and is based on 100°F inlet temperature). The first stage of filtration uses multiple layers of fiber media and screen to remove larger particles, pre-filtering the air, while the second stage utilizes multiple layers of bonded, blended fiber media for fine coalescence.
- Buy 6 for $102.64 each and save 15%
- Buy 10 for $96.60 each and save 20%
Quality aftermarket replacement filter manufactured by Walker Filtration. Walker Filtration is a world-class manufacturer of air oil separator elements (oil mist filters) for use in oil lubricated vacuum pumps and compressors. Manufacturing in excess of 1 million oil separator elements (OSEs) each year for use across a wide range of industries and applications, Walker Filtration’s oil mist separator and coalescing technology uses specialized materials that enable the most stringent of performance specifications to be achieved for both general and special applications including those requiring ATEX approval and certification.
Features
| Withstands temperatures to 150°F (66°C) |
| Push-on elements provide simple replacement |
| Piston type seals keeps unfiltered air from bypassing element |
| Stainless steel, corrosion resistant inner and outer core > Low resistance to flow > Seam welded durability |
| Matrix blended fiber media > Large, effective surface area ensures high efficiencies and minimizes pressure drop |
| Coated, closed cell foam sleeve > Resists chemical attack from oils and acids > Ensures high efficiencies by preventing re-entrainment of coalesced liquids |
| Chemically resistant end caps |
| Silicone free |
Specifications
| Model Size | 24 |
|---|---|
| Filter Element Grade | 5: High Efficiency Oil Removal |
| Model | E5-24-W |
| Stainless Steel Element | NO |
| Flow Rating | 100 SCFM |
| Design Temp | 150°F |
| Weight | 0.6 lbs |
Walker Filtration OEM/Distributor
Nuvair offers authentic parts and equipment manufactured by Walker Filtration. Beware of inexpensive aftermarket imitations labeled as "replacement," "OEM equivalent," "compatible," or "alternative," as they are not made by Walker Filtration. Some products may not be available for online purchase and others may have extended lead times. To confirm compatibility with your existing equipment or to ensure the product meets your needs, please contact the Nuvair Sales Team for ordering assistance by email or phone.
