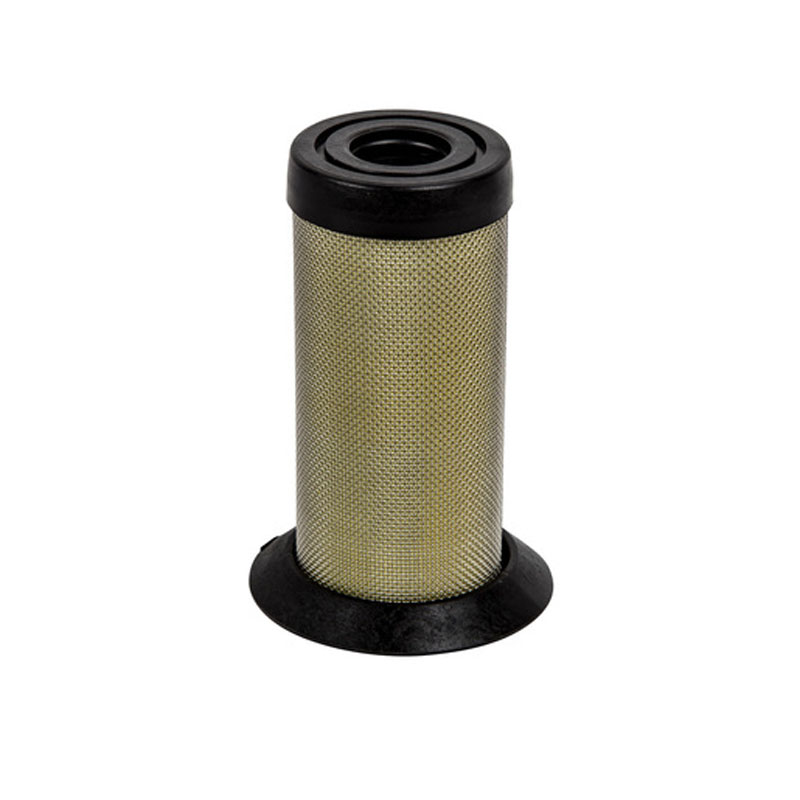

Hankison E9-16 Filter Element

$138.00

Grade 9 Filter: Separator. Mechanical for bulk liquid removal plus a 3.0 micron coalescer. 5 ppm w/w maximum remaining oil content. Two stainless steel orifice tubes provide 10 micron mechanical separation in the first stage of filtration, and an in-depth fiber media captures solid and liquid particles to 3 microns in the second stage of filtration.

SKU
E9-16
  • Buy 6 for $117.30 each and save 15%
  • Buy 10 for $110.40 each and save 20%
Hankison Genuine Parts

Nuvair is an Authorized Hankison® Distributor
Nuvair sells only genuine parts and equipment manufactured by SPX Flow Hankison®. Do not be fooled by cheap aftermarket copies of original Hankison® equipment. Items labeled “replacement” or “alternative” are not manufactured by SPX Flow Hankison®.



Features

Withstands temperatures to 150°F (66°C)
Push-on elements provide simple replacement
Piston type seals keeps unfiltered air from bypassing element
Stainless steel, corrosion resistant inner and outer core
> Low resistance to flow
> Seam welded durability
Matrix blended fiber media
> Large, effective surface area ensures high efficiencies and minimizes pressure drop
Coated, closed cell foam sleeve
> Resists chemical attack from oils and acids
> Ensures high efficiencies by preventing re-entrainment of coalesced liquids
Chemically resistant end caps
Silicone free

Specifications

Model Size 16
Filter Element Grade 9: Separator
Model E9-16
Stainless Steel Element NO
Flow Rating 35 SCFM
Design Temp 150°F
Weight 5 oz

Filter efficiency has been established in accordance with CAGI standard ADF400 and is based on 100°F (38°C) inlet temperature.

This item may not be in stock. If an urgent shipment is required, please contact the sales team for estimated lead times.
