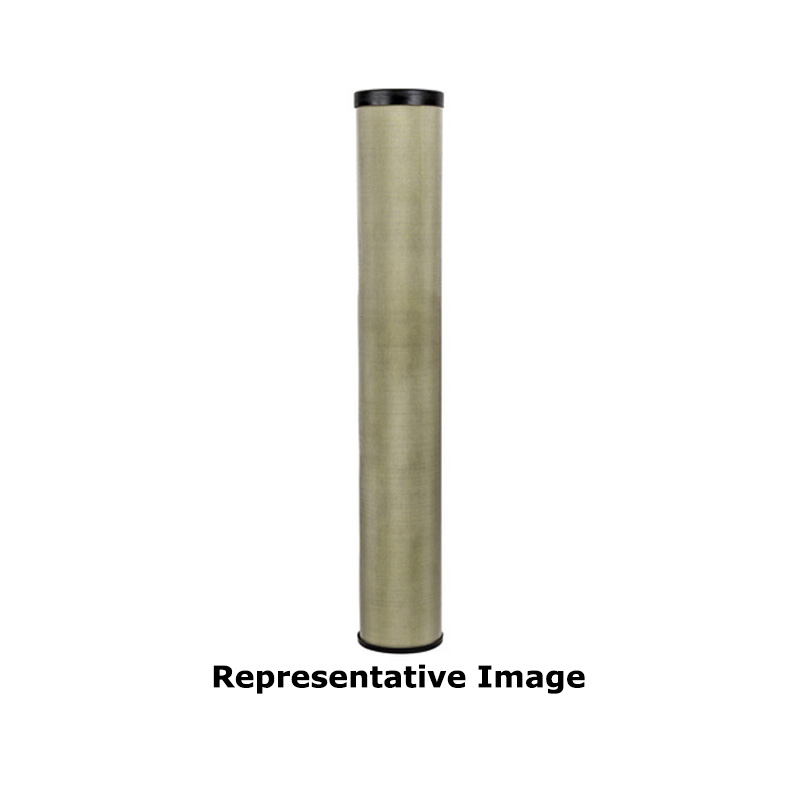

Hankison E9-24 Filter Element
Grade 9 Filter: Separator. Mechanical for bulk liquid removal plus a 3.0 micron coalescer. 5 ppm w/w maximum remaining oil content. Two stainless steel orifice tubes provide 10 micron mechanical separation in the first stage of filtration, and an in-depth fiber media captures solid and liquid particles to 3 microns in the second stage of filtration.
- Buy 6 for $194.82 each and save 15%
- Buy 10 for $183.36 each and save 20%
Features
| Withstands temperatures to 150°F (66°C) |
| Push-on elements provide simple replacement |
| Piston type seals keeps unfiltered air from bypassing element |
| Stainless steel, corrosion resistant inner and outer core > Low resistance to flow > Seam welded durability |
| Matrix blended fiber media > Large, effective surface area ensures high efficiencies and minimizes pressure drop |
| Coated, closed cell foam sleeve > Resists chemical attack from oils and acids > Ensures high efficiencies by preventing re-entrainment of coalesced liquids |
| Chemically resistant end caps |
| Silicone free |
Specifications
| Model Size | 24 |
|---|---|
| Filter Element Grade | 9: Separator |
| Model | E9-24 |
| Stainless Steel Element | NO |
| Flow Rating | 100 SCFM |
| Design Temp | 150°F |
| Weight | 0.8 lb |
Filter efficiency has been established in accordance with CAGI standard ADF400 and is based on 100°F (38°C) inlet temperature.
Hankison OEM/Distributor
Nuvair offers authentic parts and equipment manufactured by SPX Flow Hankison®. Beware of inexpensive aftermarket imitations labeled as "replacement," "OEM equivalent," "compatible," or "alternative," as they are not made by SPX Flow Hankison. Due to size, weight, specific requirements, or customer demand, some Hankison products may not be available for online purchase, and others may have extended lead times. To confirm compatibility with your existing equipment or to ensure the product meets your needs, please contact the Nuvair Sales Team for ordering assistance by email or phone.
