Murphy Safety Switch

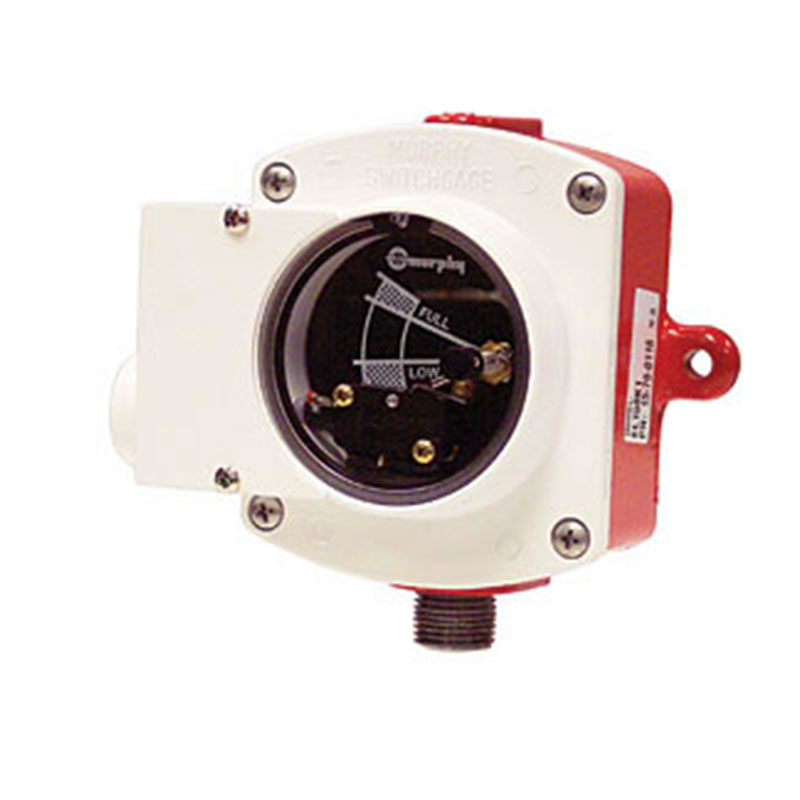

This Murphy Level Swichgage® instrument is a combination liquid level gage and low-limit switch; each unit includes (1) a chamber with pivotal float, (2) an indicating dial with pointer and (3) a low-level contact. When properly installed and maintained, the float operates the pointer which, in turn, both indicates level during normal operation and closes a switching circuit if the level falls to the low-limit set point.
The primary use of the EL150K1 is for engine cooling systems, surge or expansion tanks, condenser radiator or vapor phase systems, pressurized or atmospheric systems. The Level Swichgage instrument can also be used to monitor lube oil, hydraulic fluid or diesel fuel reservoirs and activates alarms and/or shut down at a predetermined minimum level. These instruments are built for low pressure systems with a maximum of 25 psi (172 kPa) [1.72 bar].
Specifications
- Maximum Temperature: 250° F (121° C)
- Maximum Operating Pressure: 25 PSI (172 kPa)
- Case: Die cast aluminum, polyurethane coated
- Approximate Dimensions: 5 x 4-3/4 x 2-3/4" (127 x 121 x 70mm)
- Enclosure Rating: IP35
- Mounting Holes: (2) 9/32" (7mm) diameter at 4-1/2" (114mm) on center
- Float: Brass
- Lens: Polycarbonate
- O-rings: Saturated Nitrile, are suitable for coolant or hydrocarbons
- Gasket: Nitrile
- Vent Tube: 1/4" x 5" (6 x 127mm) copper cane with 1/4 NPT x 1/4" (6mm) tube fitting
- Snap-Switch: SPDT rated 10 A @ 125 VAC; 0.5 A @ 125 VDC; 10 A 30 VDC
- Wire: (3) 18 AWG x 14" (1 mm 2 x 356 mm)
- Shipping Weight: 42 oz (1.2 kg)
- Shipping Dimensions: 5-1/4 x 5-1/4 x 5-1/2" (133 x 133 x 140mm)
