Bulkhead Female Connector Series: Tube x MNPT

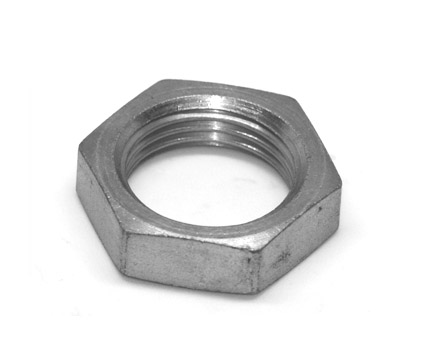

Stainless steel Bulkhead Female Connector connects fractional tule to Male NPT thread. All bulkhead fittings come with nuts. Various sizes available.
SKU
BCF-316 Series
Specifications
| SKU | D Tube O.D. |
T NPT |
d (Min.) |
h* | h1* | H* |
A |
ℓ (mm) |
ℓ1 (mm) |
L (mm) |
L1 (mm) |
Panel Hole Drill Size |
Panel Max. Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4BCF2-316 | 1/4 (6.35mm) | 1/8 | 4.82 | 5/8 | 5/8 | 9/16 | 15.24 | 39.62 | 26.16 | 51.81 | 33.52 | 11.50 | 10.16 |
| 4BCF4-316 | 1/4 (6.35mm) | 1/4 | 4.82 | 3/4 | 5/8 | 9/16 | 15.24 | 44.45 | 26.16 | 51.81 | 33.52 | 11.50 | 10.16 |
| 6BCF4-316 | 3/8 (9.52mm) | 1/4 | 7.00 | 3/4 | 3/4 | 11/16 | 16.76 | 47.75 | 29.46 | 55.11 | 36.83 | 14.68 | 11.17 |
| 8BCF8-316 | 1/2 (12.7mm) | 1/2 | 10.41 | 1-1/16 | 15/16 | 7/8 | 22.86 | 56.38 | 31.75 | 66.54 | 41.91 | 19.44 | 12.70 |
| 8BCF4-316ME | 8mm | 1/4 | 6.3 | 19mm | 11/16 | 16mm | 16.2 | 46.7 | 28.6 | 53.85 | 35.55 | 13.1 | 11.2 |
* Width Across Flat measurement.
