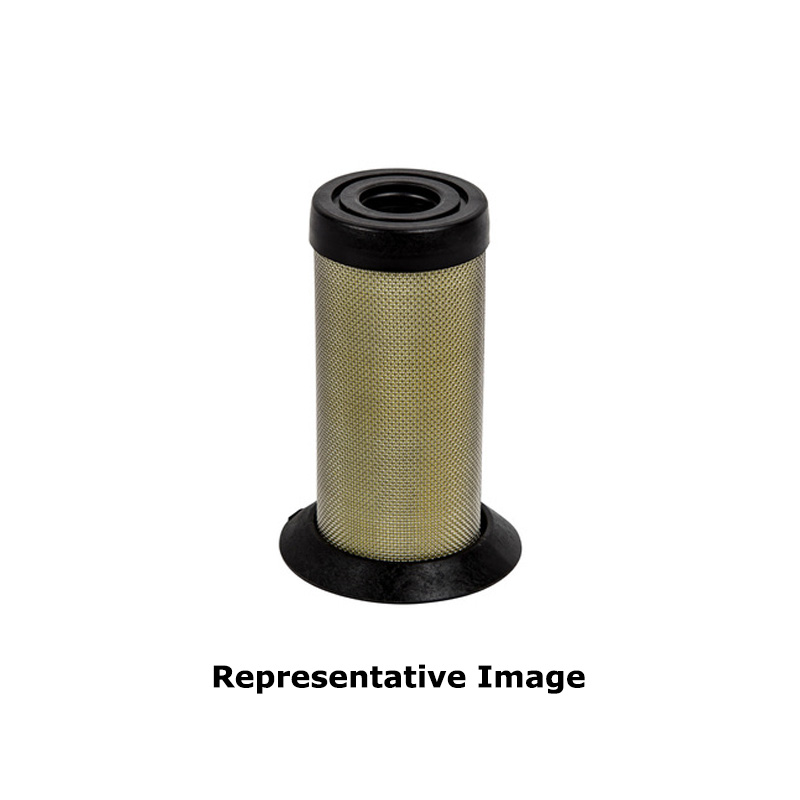

Hankison E1-20 Filter Element
Grade 1 Filter: Oil Vapor Removal Filter. Removes oil and hydrocarbon vapors normally adsorbed by activated carbon. Removes solid particulate to 0.01 microns with a 0.003 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF500 and is based on 100°F inlet temperature). Designed for a 1000-hour life at the rated conditions. Multiple layers of fiber media and screen remove larger particles, pre-filtering the air in the first stage of filtration. In the second stage, multiple layers of bonded, blended fiber media is utilized for fine coalescence. Multiple layers of fine media prevent particle migration.
- Buy 6 for $165.24 each and save 15%
- Buy 10 for $155.52 each and save 20%
Nuvair is an Authorized Hankison® Distributor
Nuvair sells only genuine parts and equipment manufactured by SPX Flow Hankison®. Do not be fooled by cheap aftermarket copies of original Hankison® equipment. Items labeled “replacement” or “alternative” are not manufactured by SPX Flow Hankison®.
Features
| Withstands temperatures to 150°F (66°C) |
| Push-on elements provide simple replacement |
| Piston type seals keeps unfiltered air from bypassing element |
| Stainless steel, corrosion resistant inner and outer core > Low resistance to flow > Seam welded durability |
| Matrix blended fiber media > Large, effective surface area ensures high efficiencies and minimizes pressure drop |
| Coated, closed cell foam sleeve > Resists chemical attack from oils and acids > Ensures high efficiencies by preventing re-entrainment of coalesced liquids |
| Chemically resistant end caps |
| Silicone free |
Specifications
| Model Size | 20 |
|---|---|
| Filter Element Grade | 1: Oil Vapor Removal |
| Model | E1-20 |
| Stainless Steel Element | NO |
| Flow Rating | 60 SCFM |
| Design Temp | 150°F |
| Weight | 0.4 lbs |
