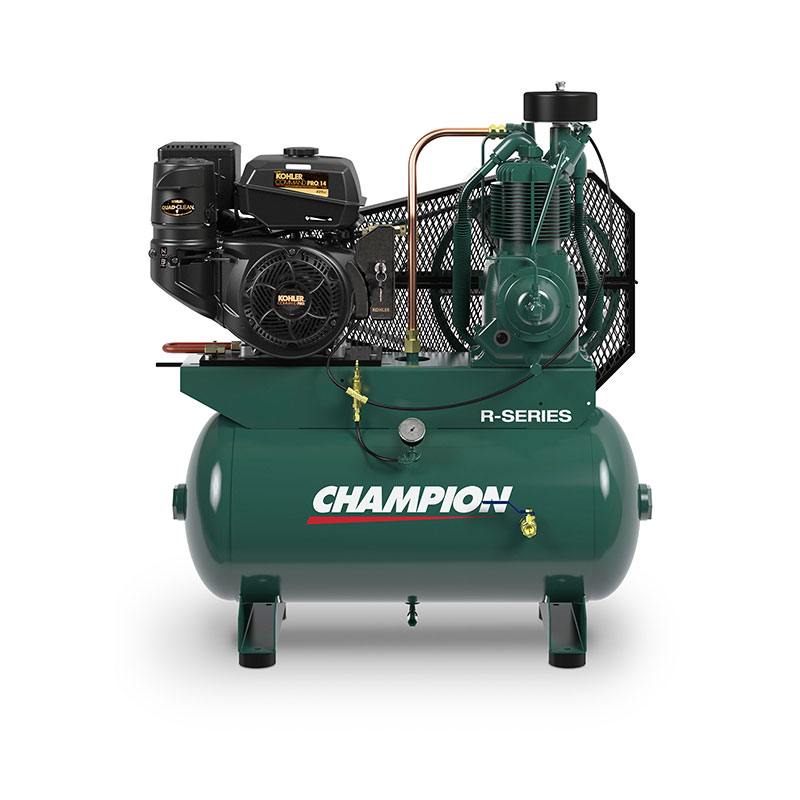

Champion R-Series 14 hp Kohler Gas Powered Compressor with 30 gal Tank
The Champion® R-Series HGR7-3K is a horizontal, reciprocating low-pressure compressor with one Kohler Command Pro CH440 14 hp gas engine driving a Champion R15 pump. Pump and engine are mounted on a 30-gallon storage tank. The HRG7-3K delivers 19.8 ACFM at 175 psi (33.6 m3/hr @ 12 bar). Available for immediate shipment. Ships free in the contiguous United States. For international and outlying state delivery rates, please contact the Nuvair sales team for assistance.
Champion® is the leader in manufacturing dependable compressed air systems. Champion offers a complete line of engine driven compressor packages from 9.1–22.5 HP to meet any application. With an engine driven package there is no need to worry about electrical service. Engine driven air compressors are designed to provide compressed air in remote locations or for emergency production line needs.
R-Series Engine Driven Design Features
1. Engine Comprehensive gas or diesel engine offering with sizes from 9.1–22.5 hp.
3. Belt Tensioning System with Engine Slide Base Provides easy service adjustments to the drive belt. The base plate also provides a sturdy platform to assist in vibration reduction.
4. High Mounted Pressure Gauge Easy to read and reduces the risk of damage.
5. Simple Mounting Feet One piece design for easy mounting.
6. Precise Throttle Control Designed to provide accurate load control and easy starting.
7. Industrial Duty Cogged V-Belts Provides maximum reliability and service life with minimal adjustments.
8. Pilot Unloader Valve No more draining the tank pressure from job site to job site. With a simple flip of the valve, the package can be started with a fully pressurized tank.
9. Legendary Compressor Pumps Utilizes the R & PL Series compressors for the most dependable package in the industry.
R-Series Standard Features
Two-Stage Compressor Pump
Splash Lubrications
Integral Cylinder Head
Belt Driven
Electric Start - Does not include battery
Totally Enclosed Belt Guard
Oil Level Sight Glass
Reliable, High Flow Disc Valves
Vibration Isolators
Intercooler for Cooling Between Stages
Precision Balanced Flywheel for Optimum Compressor Cooling
Gasketless Designed Integral Cylinder/Head
3 Year Compressor Pump Warranty
Pumps Factory Filled with ChampLub Lubricants and are Tested at the Factory Prior to Shipment
ASME & CRN Certified Air Receiver - Manual Receiver Drain Valve - Pressure Relief Valve - Service Valve - Pressure Gauge - Receivers Include Vibration Isolators
* Item shipped loose and is not installed on the compressor package.
Specifications
SKU
Tank Capacity
Pump Model
Motor HP
Dimensions (L x W x H)
Shipping Weight
175 psi RPM
175 psi ACFM
HGR7-3K
30 gal / 114 L
R15B
14**
41.6 x 20.5 x 45.5 in 106 x 52 x 116 cm
485 lb / 220 kg
950
19.8
** The Kohler Command Pro CH440 14 hp gas engine is California Code compliant.
Standard Warranty
The standard warranty covers parts and labor on the package components for one year and three years on the compressor pump. The Champion philosophy ensures long-lasting, reliable equipment. Our warranty program demonstrates our confidence in our products. Each new Champion assembled unit has a 3 year warranty on the compressor pump against defects in materials of workmanship under normal use and service. See Standard Warranty Form BU-32 for complete standard warranty details.
Premium Extended Warranty
Purchase a Premium Warranty Kit at the same time as your new Champion compressor package to receive extended warranty protection. This offer will double the coverage with an additional 3 years of warranty on the compressor pump (parts & labor) providing 6 YEARS of worry free coverage. The Premium Extended Warranty also provides an extra 12 months coverage on the package for a total of 24 months. See Premium Warranty form BU-28 for complete extended warranty details.
Premium Warranty kit has all necessary service items (oil & filters) for 6 years of annual maintenance.
The use of approved Champion lubricants are required to maintain the extended warranty period.
Duplex machines require two kits, one for each pump.
Illinois residents subject to an invoice after the sale for state sales tax owed.
