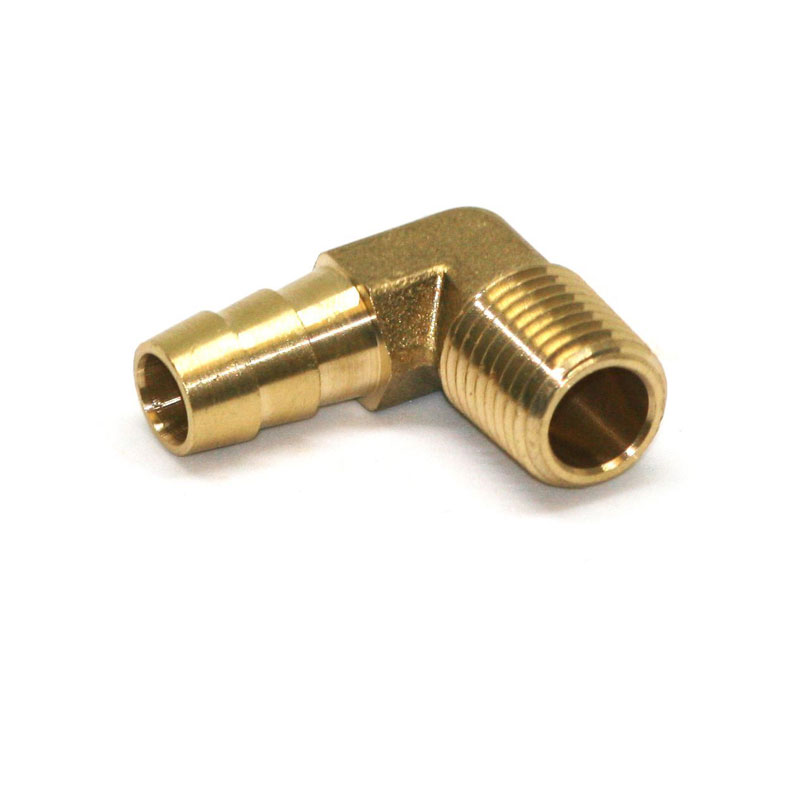

Brass Hose Barb x MNPT 90° Elbow

Brass hose barb fitting. Forged 90° elbow. Hose I.D. x MNPT. Barb size is hose I.D. Used with plastic tubing or rubber hose. Barbed edges provide positive connection. Excellent vibration resistance. Temperature range: -40°F to +160°F (Lead free fittings: -40°F to +200°F). Working pressure: 150 psi maximum. These fittings are intended for use with hose clamp, similar clamp, or a crimped ferrule.

SKU
MPT90 Series
Grouped product items
Product Name Qty
Brass 1/8" MNPT 90° x 3/16" Hose Barb · 150 psi Max | MPT90X3X2
$4.28
Brass 1/8" MNPT 90° x 1/4" Hose Barb · 150 psi Max | MPT90X4X2
$3.64
Brass 1/4" MNPT 90° x 3/8" Hose Barb Lead Free · 150 psi Max | MPT90X6X4-LF
$8.26
Brass 3/8" MNPT 90° x 3/8" Hose Barb · 150 psi Max | MPT90X6X6
$6.04
Brass 3/8" MNPT 90° x 1/2" Hose Barb · 150 psi Max | MPT90X8X6
$7.49
Brass 1/2" MNPT 90° x 1/2" Hose Barb · 150 psi Max | MPT90X8X8
$9.31
Brass 3/8" MNPT 90° x 5/8" Hose Barb · 150 psi Max | MPT90X10X6
$10.23
Brass 1/2" MNPT 90° x 3/4" Hose Barb · 150 psi Max | MPT90X12X8
$12.72
Brass 3/4" MNPT 90° x 3/4" Hose Barb · 150 psi Max | MPT90X12X12
$20.19

Specifications

SKU Hose I.D. x MNPT A B C Body Size
MPT90X6X4 3/8 in x 1/4 in 1.02 0.88 0.65 0.47
MPT90X12X8 3/4 in x 1/2 in  1.31 1.28 0.87 0.85
MPT90X6X6  3/8 in x 3/8 in  1.09 0.93 0.68 0.50
MPT90X3X2  3/16 in x 1/8 in  0.95 0.70 0.66 0.37
MPT90X8X6  1/2 in x 3/8 in  1.06 1.09 0.69 0.59
MPT90X10X6 5/8 in x 3/8 in 1.12 1.06 0.61 0.56
MPT90X4X2 1/4 in x 1/8 in 1.01 0.81 0.71 0.47
MPT90X8X8 1/2 in x 1/2 in 1.31 1.19 0.87 0.56
MPT90X12X12 3/4 in x 3/4 in 1.46 1.26 0.91 1.06
