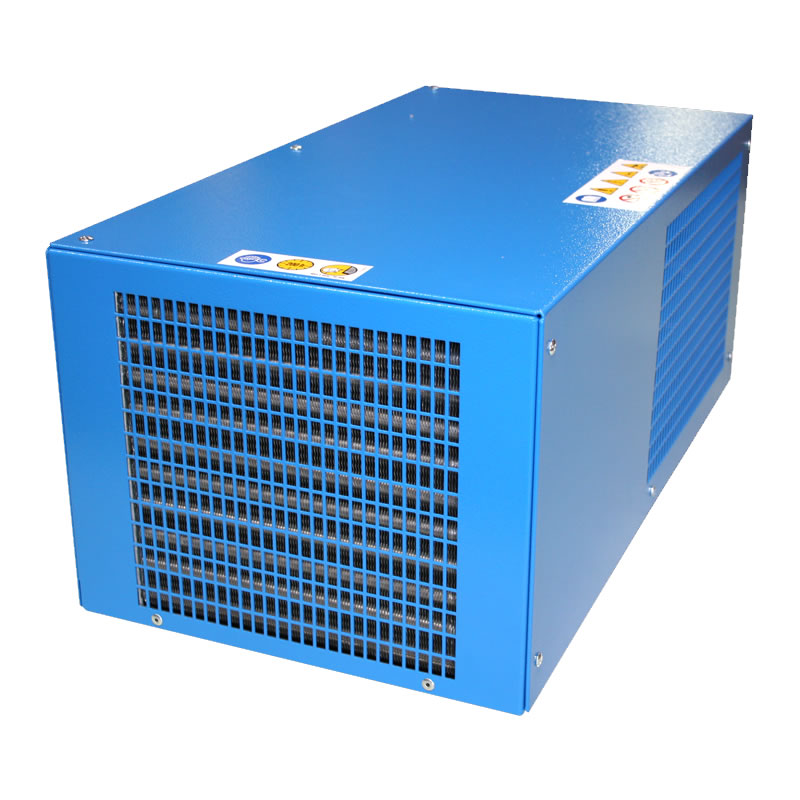

SPX Hankison HPR75 Refrigerated Dryer

The SPX Hankison HPR75 non-cycling refrigerated compressed air dryer offers the right combination of technology and simplicity to keep your air system at a dry, +38°F (+3°C) pressure dew point at 75 SCFM. This dryer is built for durability, in a space-saving design. Sturdy sheet steel is formed and protected by an epoxy-based powder coat finish.
SKU
HPR75
Hankison Genuine Parts

Nuvair is an Authorized Hankison® Distributor
Nuvair sells only genuine parts and equipment manufactured by SPX Flow Hankison®. Do not be fooled by cheap aftermarket copies of original Hankison® equipment. Items labeled “replacement” or “alternative” are not manufactured by SPX Flow Hankison®.

BETTER BY DESIGN
• 316 stainless steel, brazed plate heat exchangers efficiently dry the air to the specified pressure dew point.
• Hot gas by-pass valve maintains constant evaporator temperature
• Replaceable ambient air filter protects the condenser from airborne contaminants (maintenance kits include ambient air filter)

CONDENSATE MANAGEMENT
• Integral stainless demister/separator captures liquid condensate and solid particles
• Electronic drain valve automatically discharges condensate from the dryer

STAY IN CONTROL
• Lighted on/off switch and dew point temperature indicator

SAFETY FIRST — ENVIRONMENTAL FRIENDLY
• CFC free R134a refrigerant
• CSA approved

Specifications

SKU Rated Flow
(SCFM)
Rated Flow
(m3/h)
Refrigerant Voltage Power
(kW)
Inlet/Outlet
Connections
Dimensions
(H x W x D - in)
Weight
(lb)
HPR75 75 127 R 134a  115V/E1/60 0.52 1 in NPT  24 x 14 x 32 123
Rated Flow Capacity – Conditions for rating dryers are in accordance with ISO 7183 (Option A2). Compressed air at dryer inlet: 100 psi (6.7 bar) and 100˚F (38˚C); ambient air temperature: 100˚F (38˚C); operating on 60 Hz power supply.

Operating Conditions

Maximum Inlet
Air Pressure
Minimum Inlet
Air Pressure
Maximum Inlet
Air Temperature
Minimum Inlet
Air Temperature
Maximum Ambient
Air Temperature
Minimum Ambient
Air Temperature
232 psi (16 bar) 10 psi (1 bar)  120°F (49°C)  40°F (4°C)  110°F (43°C) 45°F (7°C)
