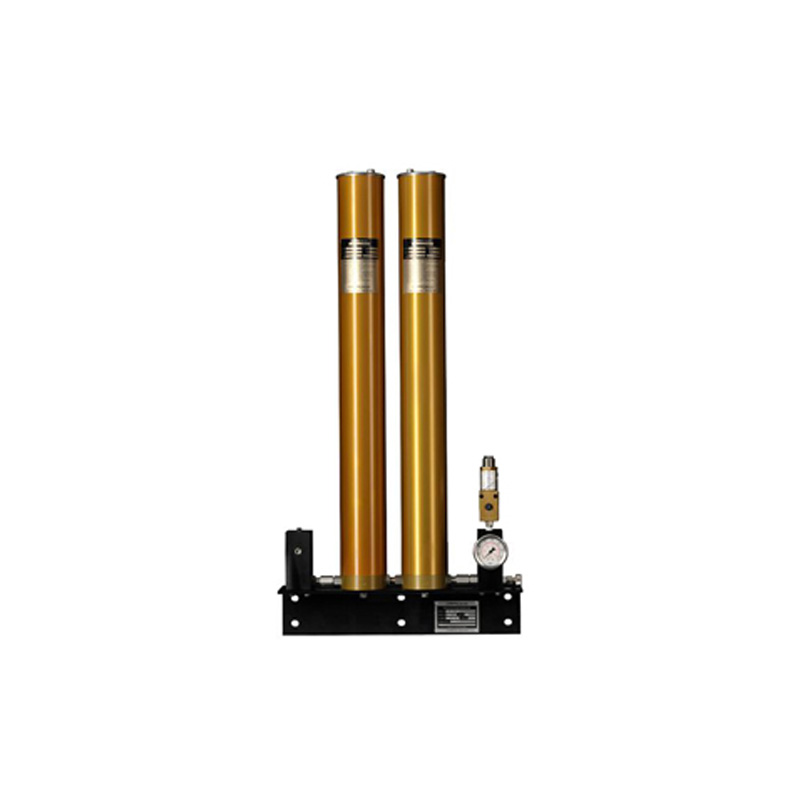

HF OCA 7000 cu ft Hyper Purifier 5000 psi
$3,648.12
Oxygen Compatible Air (OCA) Hyper Pure filter system includes:
- Inlet isolation valve and manifold
- Redundant check valves
- Priority valve
- Pressure gauge
- Petcock vent
- All stainless steel couplers and fasteners
- High efficiency micron filter
- Filter cartridge set
- Instruction manual
Replacement filter element: SKU X96338
SKU
HF-962-134-F
Polishing clean gases to ultra pure levels (up to 99.99%) requires equipment designed to those standards. The Hyper Pure filter system meets the demands of applications such as very pure laboratory gases, blending gases, oxygen compatible air (OCA), and anywhere that zero air* might be required. Hyper Pure is a sensible and simple way to process these gases.
Specifications
| Working Pressure | 2000-5000 psi (138-345 bar) maximum |
|---|---|
| Operating Temperature | 100°F (37.8°C) |
| Flow Rate | 6 SCFM (170 L/min) |
| Cubic Feet | 7000 |
| Safety Factor | 4:1 |
| Cycle Life | 15,000 |
| Construction of Cartridge Holder | Aluminum with bronze hard anodize |
| Options | ∙ High capacity micronic filter and ultra efficiency micron ∙ Handle ∙ SCBA or SCUBA inlet stem adapter |
| Dimensions | 11 in H × 32 in W × 6 in D |
| Clearance | Allow 22 in overhead clearance for filter cartridge changes |
| Warranty | One year |
* Specific to the HF series of purifiers, "zero air" is defined as specially polished Grade E air that contains less than 0.1 ppm of hydrocarbon impurities. It is usable in mixing with pure oxygen or other gases.
