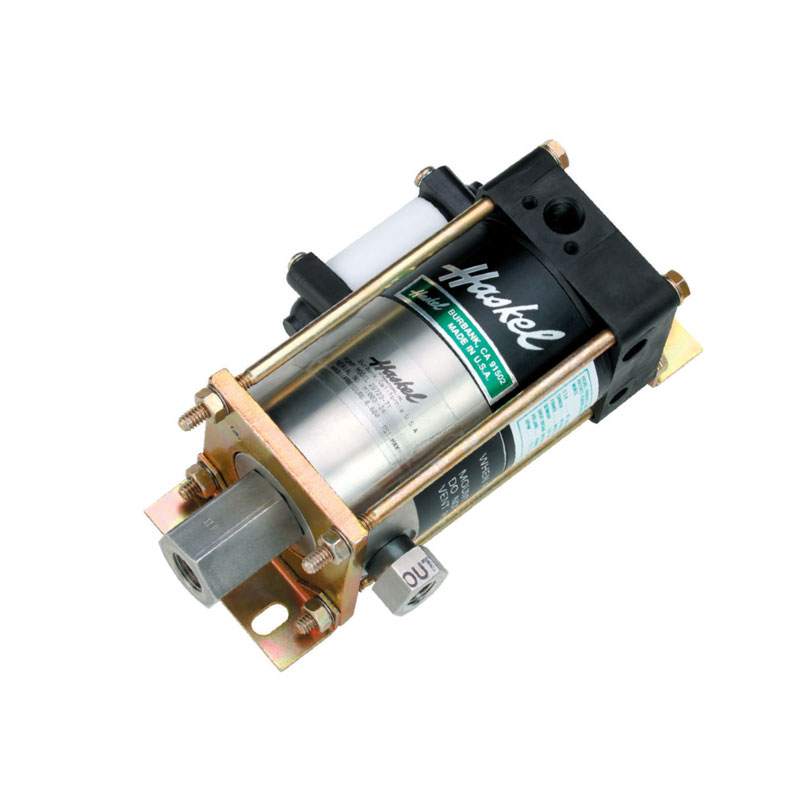

Haskel M-Series Liquid Pump .33 hp 900 psi | MS-7
Haskel pneumatic driven liquid pumps are designed to provide a safe, reliable and economical source of hydraulic pressure. The Haskel M-Series are .875 in stroke, .33 hp miniature pumps. MS- pumps are equipped with a stainless steel hydraulic piston and body. Maximum rated output pressure: 900 psi (62 bar).
Specifications
| Max Air | 125 psi / 8.6 bar | |
|---|---|---|
| Air Head | Single | |
| Power | 0.33 hp (0.25 kW) | |
| Actual Ratio Area | 7.8 | |
| Maximum Rated Output Pressure |
Continuous psi | 900 |
| Continuous bar | 62 | |
| Intermittent psi | 900 | |
| Intermittent bar | 62 | |
| Displacement/Cycle | cu in | 0.60 |
| mL | 9.8 | |
| Maximum Flow | cu in/min | 366 |
| L/min | 6.00 | |
| Uses | All hydraulic fluids, water (plain or DI), solvents, mild chemicals, and liquified gases |
|
| 24/7 Continuous Duty Applications for Maximizing Seal Life Performance |
90 cpm (maximum cycles per minute) | |
Haskel OEM/Distributor
Nuvair offers authentic parts and equipment manufactured by Haskel® International, an Ingersoll Rand Business. Beware of inexpensive aftermarket imitations labeled as "replacement," "OEM equivalent," "compatible," or "alternative," as they are not made by Haskel International. Due to size, weight, or specific requirements, some Haskel products may not be available for online purchase, and others may have extended lead times. To confirm compatibility with your existing equipment or to ensure the product meets your needs, please contact the Nuvair Sales Team for ordering assistance by email or phone.
