Nuvair Nitrox Membrane Systems
Nuvair Nitrox Membrane Systems use a semi-permeable membrane to produce oxygen-rich air (also known as nitrox, enriched air nitrox, EAN, or EANx). A portion of the nitrogen in air is separated out, producing a nitrox mixture containing between 24 and 40% oxygen (O2). The nitrox is then delivered to a high pressure (HP) Compressor (to fill scuba cylinders or storage tanks) or to a low pressure (LP) compressor (for pumping to surface-supply divers). Compressors that generate enriched air nitrox are described as “nitrox compressors," but these same compressors can also deliver air. Nuvair manufactures turnkey nitrox membrane systems that can be integrated into existing compressors.
General Membrane Specifications
| Oxygen Percentage Output Range | 24-40% |
|---|---|
| Input Operating Pressure | 80-170 psi (6-12 bar) |
| Maximum Input Pressure | 300 psi (21 bar) |
| Low Pressure (HP) / High Pressure (HP) Supply Air Quality | LP: Grade D / HP: Grade E |
| Membrane Temperature | 110°F ±5° (43°C ±3°) |
Please Note: All Nuvair Nitrox Membrane Systems are custom-made. Please contact the sales team for estimated lead times.
Individual Membrane Specifications
| SKU | Nuvair 6 | Nuvair 10 | Nuvair 16 | Nuvair 18.5 | Nuvair 20 | Nuvair 32 | Nuvair 50 |
|---|---|---|---|---|---|---|---|
| Supply Air Volume Range |
4-15 SCFM (106-425 L/min) |
8-25 SCFM (212-708 L/min) |
13-40 SCFM (354-1133 L/min) |
13-40 SCFM (354-1133 L/min) |
20-50 SCFM (354-1133 L/min) |
25-80 SCFM (708-2266 L/min) |
40-125 SCFM (1133-3540 L/min) |

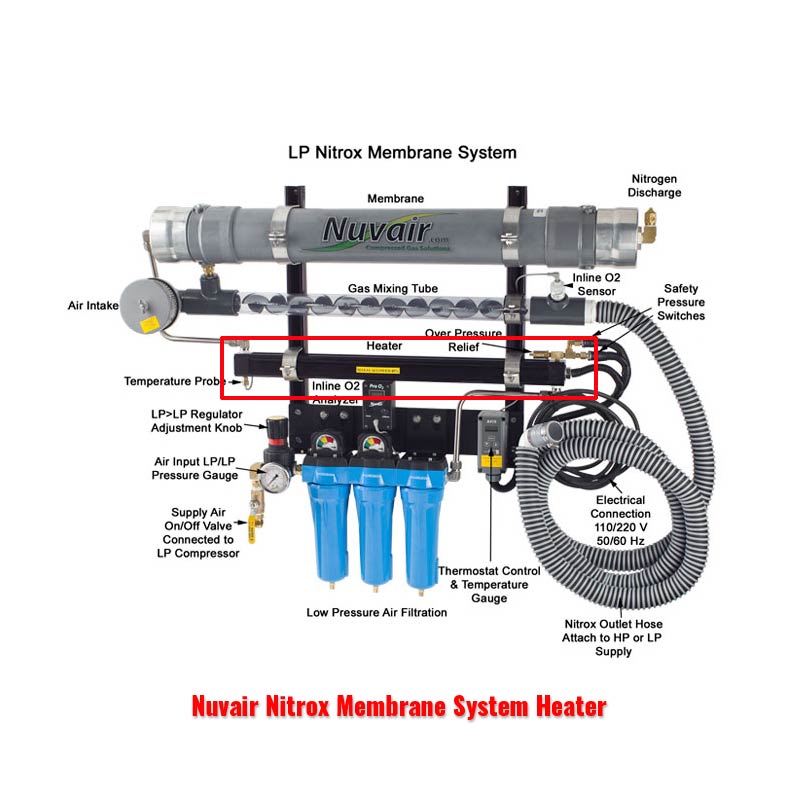

| Heater Electrical Power |
7A @ 110 VAC, 5A @ 220 VAC, 50/60 Hz |
7A @ 110 VAC, 5A @ 220 VAC, 50/60 Hz |
10A @ 220 VAC, 50/60 Hz |
10A @ 220 VAC, 50/60 Hz |
10A @ 220 VAC, 50/60 Hz |
10A @ 220 VAC, 50/60 Hz |
10A @ 220 VAC, 50/60 Hz |
| Length | 44 in (1118 mm) |
46 in (1168 mm) |
66 in (1676 mm) |
46 in (1168 mm) |
46 in (1168 mm) |
66 in (1676 mm) |
66 in (1676 mm) |
| Height | 30 in (762 mm) |
32 in (813 mm) |
32 in (813 mm) |
32 in (813 mm) |
38 in (965 mm) |
38 in (965 mm) |
45 in (1143 mm) |
| Depth | 6 in (152 mm) |
6 in (152 mm) |
6 in (152 mm) |
6 in (152 mm) |
6 in (152 mm) |
6 in (152 mm) |
6 in (152 mm) |
| Weight | 39 lb (18 kg) |
44 lb (97 kg) |
50 lb (110 kg) |
50 lb (110 kg) |
58 lb (128 kg) |
70 lb (154 kg) |
90 lb (198 kg) |
Membrane System Schematic
Membrane System Flow Chart
