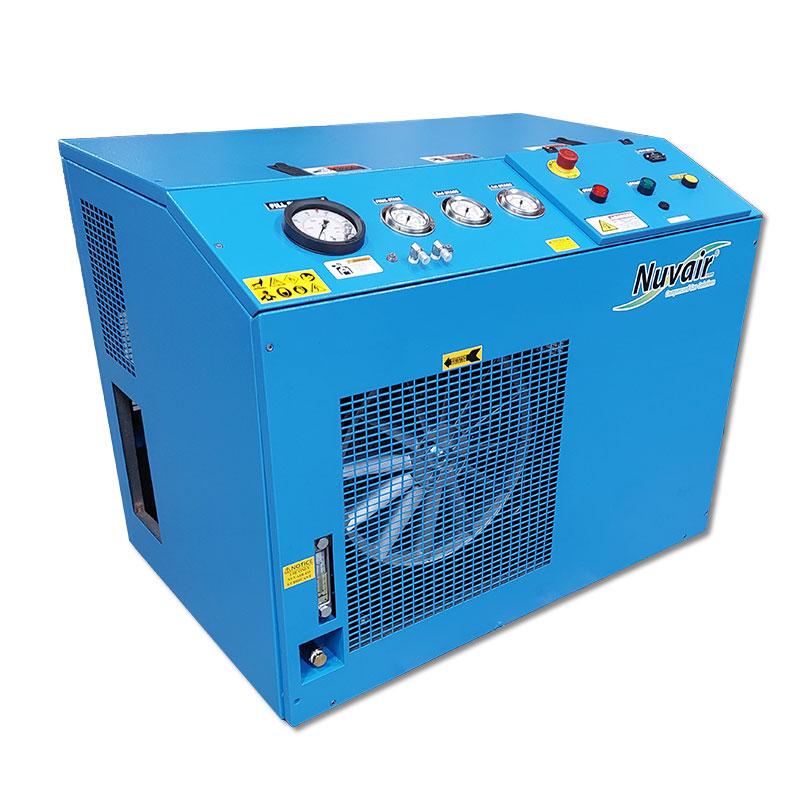

Nuvair MCH13 / MCH16 Compact EVO E1 Compressor
The Nuvair Compact EVO E1 series of single-phase compressors include a semi-soundproofed cabinet, interstage pressure gauges, high temperature and low oil shutdown switches. The compressor switches off automatically when the pressure level set by the operator is reached. Timed automatic condensate discharge using electromagnetic solenoid valves. The tank mounted on the frame holds condensate for pollution-free disposal.
Rubber supports reduce vibration by insulating the motor and pumping unit from the frame. Special consideration has been given to compressor cooling. The cooling fan diameter has been increased to 440 mm and grills on the frame ensure that air flows smoothly through the unit. Oil and filter change are a simple operation on this compressor. External access simplifies oil level monitoring and changes.
Features
- Magnetic starter with thermal overload protection
- Automatic condensate drains with collector
- Dial-a-Pressure final pressure switch and gauge allow for quick, fingertip pressure setting and automatic shutoff
- Two (2) high-pressure filling hoses with on/off valve and bleed for scuba
- Emergency shutdown
- Hour meter
- Semi-soundproof cabinet
- External oil sight gauge
- 5000 psi (345 bar) maximum pressure
- Grade E breathing air filtration
- Automatic stop
- Stainless steel intercoolers
- Interstage pressure gauges
- High temperature shutdown
- Low oil shutdown
Options
- Carbon Monoxide (CO) analyzer
- Visual CO/moisture indicator
- Moisture (H2O Pro) analyzer
- Filtration upgrade
- 6000 psi (414 bar)
- Pressure lubricated block for tropical locations
Specifications
| Model | Compact EVO MCH13 | Compact EVO MCH16 |
|---|---|---|
| Fill Time* | ~11 minutes | ~9 minutes |
| Charging Rate* | 8.4 SCFM (238 L/min) | 11.3 SCFM (320 L/min) |
| CFM FAD | 7 CFM (200 L/min) | 9.4 CFM (266 L/min) |
| 208-230V / E1 / 60Hz | 25.2A SKU 8031.1-EVO |
38.5A SKU 8033.1-EVO |
| 208-230V / E1 / 50Hz | 24A SKU 8031.2-EVO |
42.2A SKU 8033.2-EVO |
| Motor Power | Single-phase 5.5 hp (4 kW) | Single-phase 7.5 hp (5.5 kW) |
| Max. Operating Pressure | 5000 psi (345 bar) | 5000 psi (345 bar) |
| RPM | 1300 | 1450 |
| Number of Stages | 3 | 3 |
| Number of Fill Hoses | 2 | 2 |
| Condensate Drain | Automatic | Automatic |
| Fill Pressure Stop | Automatic | Automatic |
| Sound Level @ 3 Meters | 74 dB | 81 dB |
| Dimensions Single Phase (E1) |
41.5 × 28.5 × 36.5 in (105 × 72 x 93 cm) |
41.5 × 27.75 × 32.5 in (105 × 71 × 83 cm) |
| Weight | 337 lb (153 kg) | 450 lb (204 kg) |
| Lubrication | Splash lubrication, capacity 1.8 L | |
| Air Quality | DIN 3188 - CGA Grade E - NFPA 1500 - EN12021 | |
* Based on 80 cu ft cylinder from 500 to 3000 psi.
