6000 psi Gas Storage Cylinder 650 cu ft UN/ISO/DOT
Seamless steel cylinder with working pressure of 6000 psi (414 bar). 650 cu ft (18,372 L) air storage capacity. Hydraulic and ultrasonic tested, DOT, UN, and ISO approved. For non-embrittling gas service only.
Specifications
| Working Pressure | ≤6005 psi · ≤414 bar |
|---|---|
| Test Pressure | 9007 psi · 621 bar |
| Burst Pressure | ≥14,417 psi · ≥994 bar |
| Working Air Capacity | 650 cu ft · 18,372 L |
| Water Capacity | 45 L |
| Length (without cap) | 56.5" (±0.39") · 1435 mm (±10 mm) |
| Diameter | 8.99" · 228.4 mm |
| Weight (empty) | 182.5 lb · 82.8 kg |
| Temperature Range | –58°F to +149°F · –50°C to +65°C |
| Service Lifetime | Non-Limited-Life |

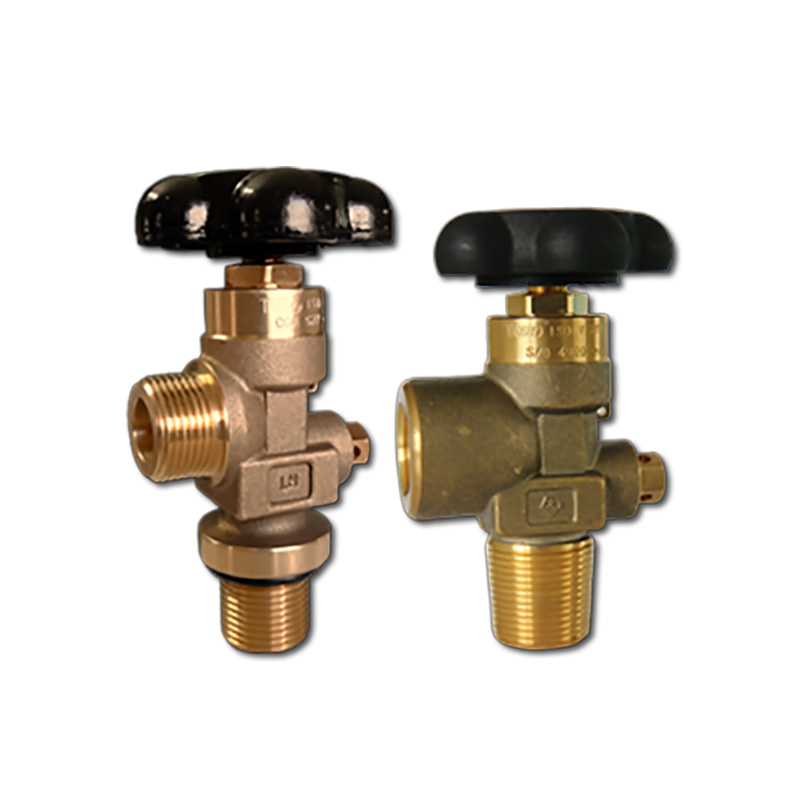

| Available Tank Valves¹ | Tank Only · SKU NUVT6000-W CGA677 Valve · SKU NUVT6000-W-677 CGA702 Valves: SKU NUVT600-W-702 Email Us with Cylinder/Valve/Gas Questions |
| DOT Approval | CA2006050031 |
| International Compliance | ISO9809-2:2010 |
| Allowable Use² | Non-embrittling gas service only |
| Color | Gray |
¹For a full list of acceptable storage tank gases, see below. For additional information on gas/valve/cylinder compatibility, please email the Nuvair sales team.
²Acceptable Storage Cylinder Gases
Source: ISO 1114-1:1997(E)
Group 1
Gases compatible with all materials (Code 11111)
Argon
Bromochlorodifluoromethane
Bromotrifluoromethane
Bromotrifluoromethylene
Butadiene-1,3
Butadiene-1,2
Butane
Butene-1
Butene-2 (cis)
Butene-2 (trans)
Carbon dioxide
Carbon monoxide
Carbon tetrafluoride
Carbonyl sulphide
Chlorodifluoromethane
Chloropentafluoroethane
Chlorotetrafluoroethane
Chlorotrifluoroethane
Chlorotrifluoroethylene
Chlorotrifluoromethane
Cyclopropane
Dibromodifluoromethane
Dibromotetrafluoroethane
Dichlorodifluoromethane
Dichlorofluorom ethane
Dichlorotetrafluoroethane
1, 1 Difluoro-1-chloroethane
1, 1 Difluoroethane
Dimethyl ether
Ethane
Ethylene
Ethylene oxide
Fluoroethane
Fluoromethane
Trifluoromethane
Helium
Hexafluoroethane
Hexafluoropropene
lsobutane
lsobutylene
Krypton
Methane
Neon
Nitrogen
Nitrous oxide
Nitrogen trifluoride
Octafluoro-2-butene
Octafluorocyclobutane
Octafluoropropane
Oxygen
Propane
Propadiene
Propylene
Propylene oxide
Sulphur dioxide
Sulphur hexafluoride
Tetrafluoroethylene
Trichlorotrifluoroethane
1 , 1, 1 Trifluoroethane
Xenon
Group 4
Gases compatible with all materials but requiring high grade stainless steels (Code 11211)
Dichlorosilane
Hydrogen cyanide
Silicon tetrachloride
Silicon tetrafluoride
Sulfphur tetrafluoride
Trichlorosilane
Group 5
Gases compatible with all materials except brass (Code 11110)
Ammonia
Cyanogen
Dimethylamine
Ethylamine
Methylamine
Trimethylamine
Group 6
Gases compatible with all materials except brass and requiring high grade stainless steels (Code 11210)
Nitric oxide
Nitrogen dioxide
Group 7
Gases compatible with all materials except aluminium (Code 11101)
Chloromethane
Ethyl chloride
Group 8
Gases compatible with all materials except aluminium and requiring high grade stainless steels (Code 11201)
Chlorine
Fluorine
Phosgene
Tungsten hexafluoride
Group 9
Gases compatible with all materials except aluminium and requiring high grade stainless steels and high grade bronze or nickel alloys (Code 11202)
Boron trichloride
Boron trifluoride
Methyl bromide
Group 10
Gases compatible with all materials except aluminium and requiring high grade stainless steels and brass containing less than 70% Cu (Code 11203)
Vinyl bromide
Vinyl chloride
Vinyl fluoride
Copyright © ISO
