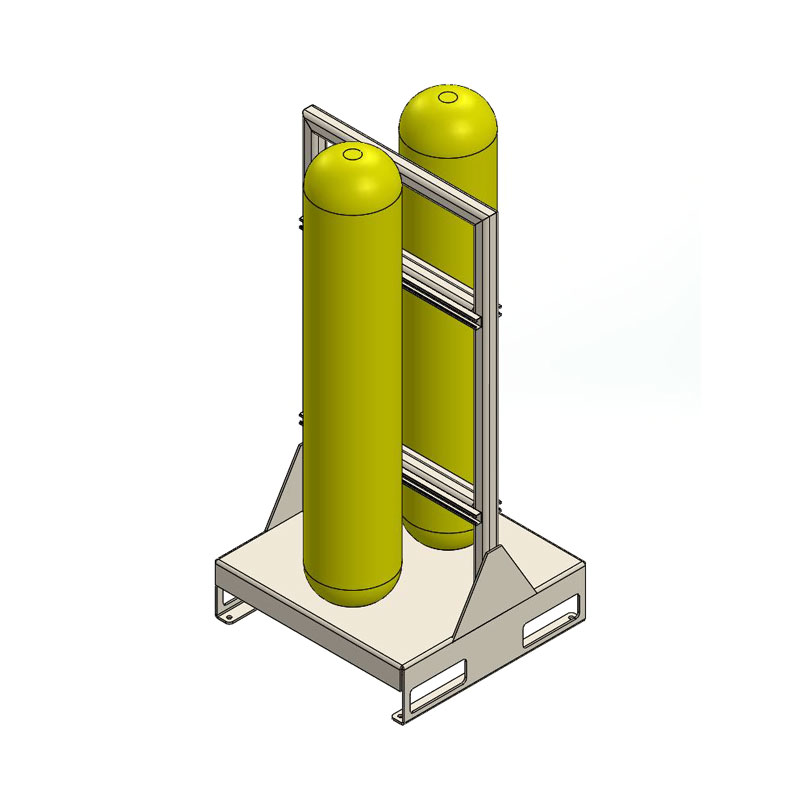

2-Tank ASME Short Rack Complete
The Nuvair ASME 2-tank storage short rack is a complete package: rack, cylinder, valves, gauge, fittings and tubing. The package is customizable to your specific requirements. All racks are powder coated blue; other colors available upon request. Rated to 7000 psi. Total rack storage capacity: 1074 cu ft. Other ASME racks can accommodate 1, 3, or 6 tanks. Our custom racks can meet most requirements. Some racks are available in a horizontal configuration. Certified frames are also available. Unless otherwise stated, air/nitrogen storage tanks are sold separately.
SKU
NUVTR-S2-7000-ASME
Specifications
The NUVTR-S2-7000-ASME 1-tank storage short rack is a complete high pressure air storage package rated to 7000 psi. The package includes:
- (1) 2-Cylinder Steel Rack
- (2) Storage Tanks*
- (4) Kunkle ASME Relief Valve
- (4) On/Off Valves - each tank has an inlet and drain
- (4) 2.5 in Stainless Steel Gauge
- Stainless Steel Fittings and Tubing
| SKU | Tank Capacity |
Approximate Rack Dimensions |
Total Air Storage Capacity |
Approximate Total Weight |
|---|---|---|---|---|
| NUVTR-S2-7000-ASME | 2 | 56.25 L × 26.25 W × 26.75 H in | 1074 cu ft (30.4 m³) |
TBD |
Custom racks are fabricated at our California production facility. Please contact the sales team for estimated lead times.
* ASME storage tank: 54 in L x 9.48 in OD. 537 cu ft @ 7000 psi maximum pressure. Optional tank sizes available. Racks are powder coated blue; other colors available. Frame only for this configuration is also available. See SKU FR-193.
