Pick-O2 Oxygen Analyzer · Discontinued
The Pick-O2 oxygen analyzer is no longer stocked by Nuvair. Please consider other oxygen analyzer solutions listed below under RELATED PRODUCTS and OTHER PRODUCTS YOU MIGHT LIKE.
SKU
PIC-O2

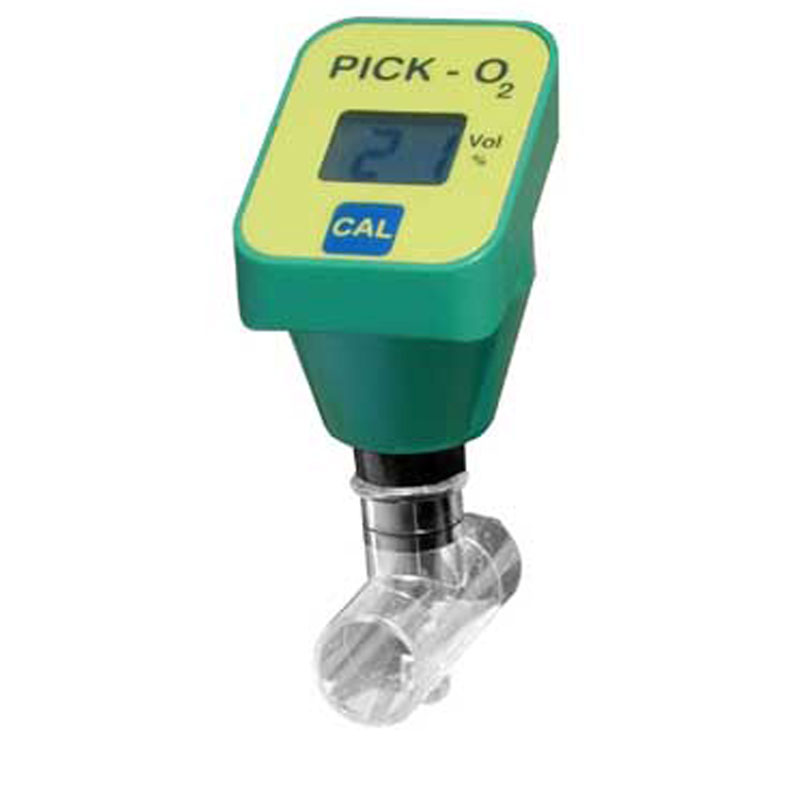

The Pick-O2 oxygen analyzer is a handheld device that measures the oxygen concentration in gas mixtures continuously. It measures the oxygen concentration between 0% and 99% and is easily calibrated at ambient air with just one push of a button. The unit is equipped with a long-life oxygen sensor and a battery both selected for the lifetime of the device. The affordable price allows to replace the device once sensor and battery have reached their end of life.
Specifications
| Display | 2 digit LCD |
| Height | 0.5 in (2.7 mm) |
| Calibration | 1 Button, after pressing displayed Value = 21 Vol. % O2 |
| Effective range | 0-99 Vol. % O2 |
| Resolution | 1 Vol. % O2 |
| Accuracy | ±0.5 Vol. % O2 from 0 to 50 Vol. % O2 ±2 Vol. % O2 from 50 to 99 Vol. % O2 |
| Response Time 90% | Less than 2 seconds |
| Sample Rate | 1 per second |
| Temperature Range | 0-50°C |
| Connector | M 16 x 1 |
| Dimensions (L x W x H) |
2.3 x 1.9 x 2.9 in (59 x 48 x 74 mm) |
