Dive Shop Air/Nitrox Turnkey Package #2

was $54,922.00 Special Price $49,995.00

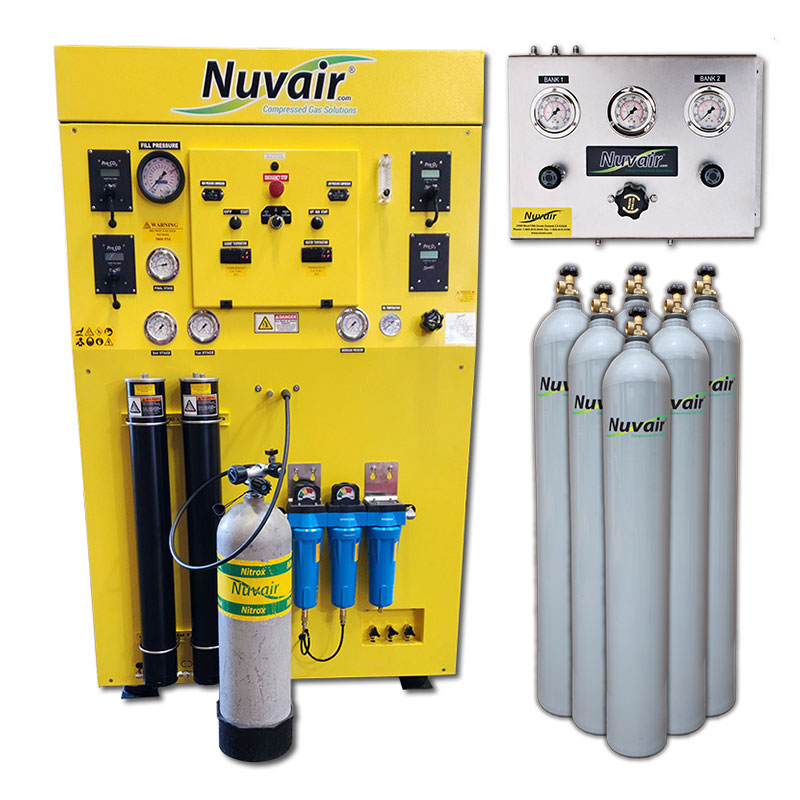

The Nuvair Dive Shop Package #2 is a turnkey system featuring the Nuvair Voyager 315 Nitrox Generator that pumps air or produces 22–40% oxygen enriched air (nitrox) for filling scuba tanks or storage banks. This fully automatic package comes with an enclosed cabinet for noise reduction and protection from moving parts. Its modular, two-part cabinet system fits through most doorways and is the perfect selection for dive shops with limited access and space. The package also includes (6) 4500 psi storage tanks, a 2-bank fill panel, and high pressure hoses and fittings.

SKU

PKND2-315

Details

DEMA SHOW SPECIAL: $49,995 Valid Until November 22, 2024 at 11:59 pm Pacific Time

PLEASE NOTE: Dive shop packages are not available for purchase online. Each package is custom-built to customer specifications. This page reflects the current base price for Dive Shop Air/Nitrox Turnkey Package, SKU PKND2-315-E.6 · 380-415V/E3/50Hz. Your final purchase price may differ. Please contact the Nuvair Sales Team to place your order.

Package #2 Includes

Nuvair Voyager 315 Nitrox System
Six (6) 4500 psi Storage Tanks with Connecting Hardware for a total of 2922 cu ft of air storage

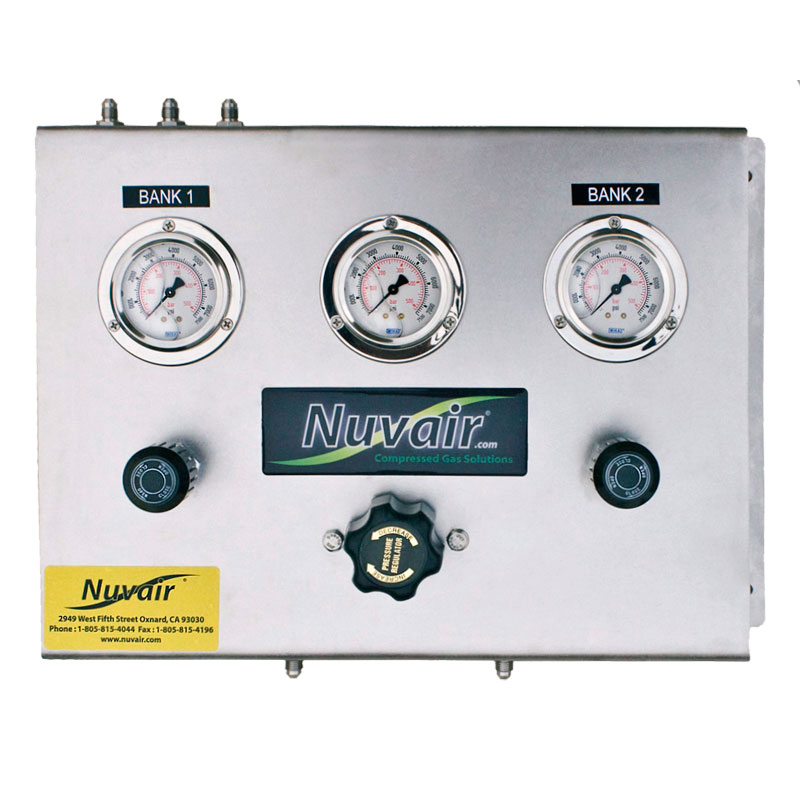

Two Bank Fill Panel (SKU PN-2BA)
High Pressure Hoses & Fittings · 3 x 12’ (SKU 520N-4)

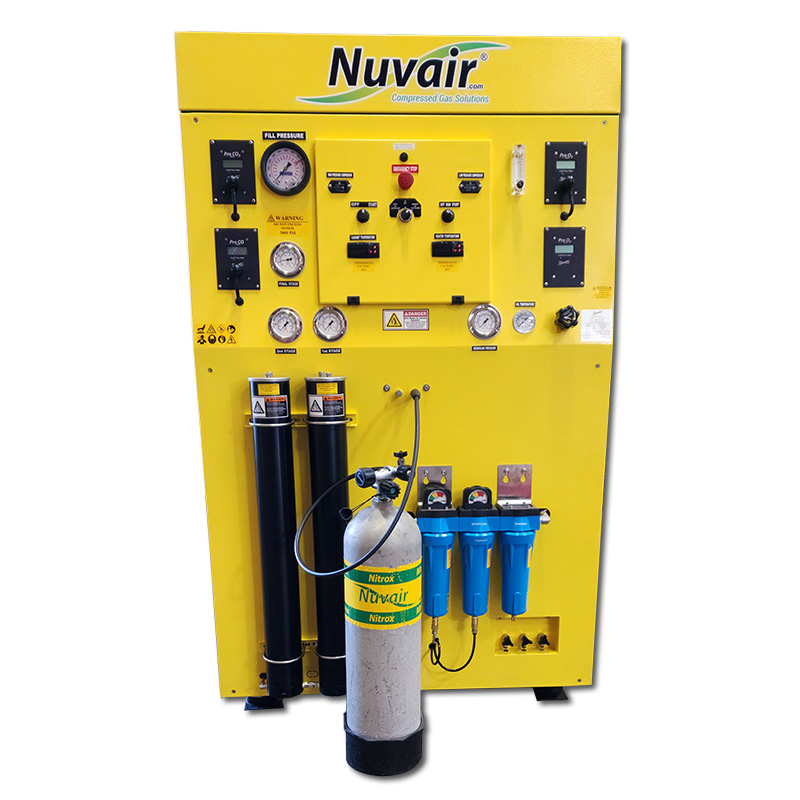

Voyager 315 Features

Fully Featured for Automatic Operation
Enclosed and Silenced Cabinet
Modular, Two-Part Cabinet System Fits Through Most Doors
Nuvair Membrane System Delivers EANx40 at 10 CFM
Champion EK76 Rotary Screw LP Compressor
- Pump Rated at 29 ACFM @ 175 psi for Membrane Supply
- High Quality 10 hp Electric Motor
Three-Stage High Pressure Compressor
- Pumps Air to 4500 psi (310 bar); Nitrox to 3800 psi (262 bar)
- Pump Rated at 10.6 CFM powered by a 7.5 hp Electric Motor
Hankison 3-Stage LP Air Filtration
Refrigerated Air Dryer
Automatic Dial-a-Pressure Shutdown
Automatic LP/HP Condensate Drains
Cabinet Temperature Gauge
Push Button On/Off Motor Starters
LP and HP Compressor Hour Meters
External Oil Sight Gauge, Fill and Drain
Cooling Fans
High Cabinet Temperature Shutdown
Two (2) Pro O₂ analyzers (one permeate and one fill oxygen analyzer)
One (1) CAN-35 Filtration Tower processes 26,000 ft³ of Grade E air

Voyager 315 Advantages

Complete state-of-the-art LP/HP nitrox generating system
Simplest, most cost-effective solution available
None of the costs, hassles, or hazards of oxygen blending
Semi-silenced enclosure reduces operating noise

Package #2 Options

CO₂ Scrubber (SKU 6070.5, as pictured)
6000 psi Storage Tanks (SKU NUVT6000-W) for 3900 cu ft of air storage
Standalone Volume Tank in lieu of Refrigerated Air Dryer
Second CAN-35 Filtration Tower (as pictured)
Pro H₂O (moisture), Pro CO (carbon monoxide), and/or Pro CO₂ (carbon dioxide) analyzers (As pictured, Pro CO · Pro CO₂ installed)
Upgraded Fill Panel
Available Power Supplies: 208-230V/E1-E3/50-60Hz, 380-415V/E1-3/50 Hz, or 440-480V/E3/60Hz
