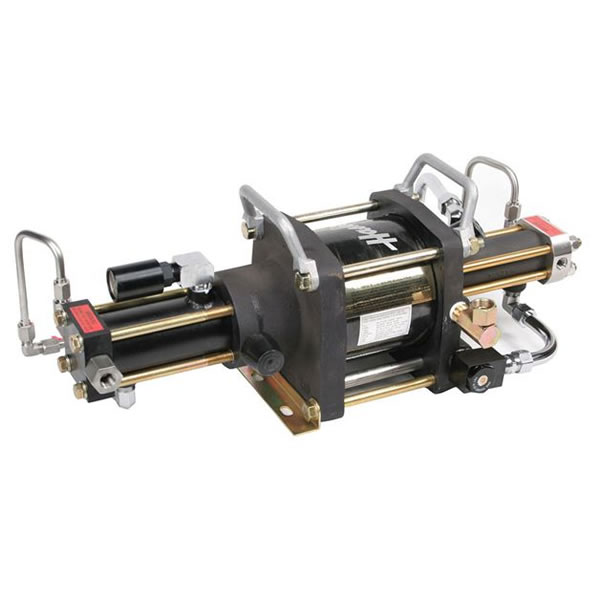

Haskel Two-Stage Gas Booster | AGT-15/30

$9,458.00

The two-stage Haskel AGT booster provides efficient means of boosting to a high gas compression ratio since the ratio per stage is low. This model is used when trying to get the most out of your supply tank and yet get a full fill tank.

SKU
AGT-15/30

Specifications

Drive 5.75 in (14.6 cm)
Ratio 50:1
Static Outlet (Stall) Pressure 30 Pa + 2 Ps
Weight 39 lb (18 kg)
Max Rated Inlet Pressure 5000 psi (345 bar)
Max Rated Outlet Pressure 5000 psi (145 bar)
Volume per Cycle 6.2 cu in (.1016 L)
Max Inert Gas Pressure 9000 psi (621 bar)
Max O2 Pressure Output 5000 psi (345 bar)
Min Gas Supply Pressure 50 psi (3.45 bar)



AGT-15/30 Gas Booster Dimensions

Click for Haskel Parts Page

Nuvair is an Authorized Haskel® Distributor
Nuvair sells only genuine parts and equipment manufactured by Haskel® International. Do not be fooled by cheap aftermarket copies of original Haskel® equipment. Items labeled “replacement” or “alternative” are not manufactured by Haskel®.

Some Haskel parts may not be available for immediate shipping. Please contact the sales team for estimated lead times.
