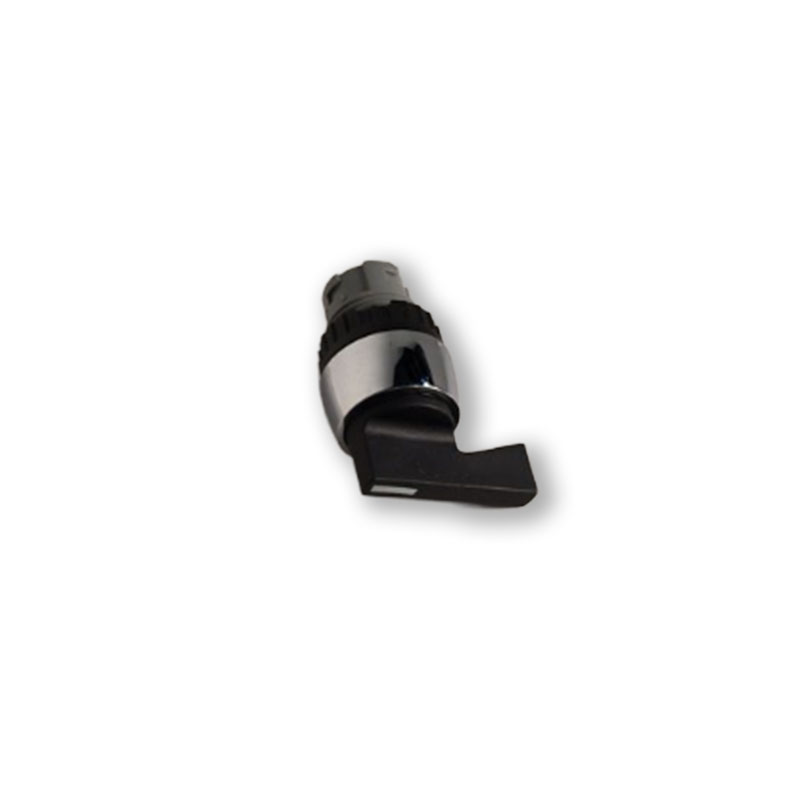

4-Way, 5-Port, 2-Position Switch Valve

Hand operated pneumatic valve with two position switch. Manual pneumatic directional valve with a four-way operation and five ports (P = Pressure, A = Outlet 1, B = Outlet 2, EA = Exhaust for port A, EB = Exhaust for port B). Four-way, two-position valves are generally used to fully extend and retract a double acting cylinder, or in applications with similar operation. 1/4 in NPT two-position detented switch. Pushlock fittings not included.


Operation 4-Way, 5-Port, 2-Position Switch
Type Hand operated directional air valve
Port Size 1/4 in NPT (1/8 in NPT exhaust ports)
Operating Pressure 0–116 psi
Operating Temperature 14 to 140°F (-10 to 60°C)
Action Direct acting
Flow Coefficient (Cv) 0.89
Working Medium 40 micron filtered air or inert gas
Body Material

Anondized aluminum

Seal Material

NBR (Buna N)

 Button Material ABS
Lubrication Not required
