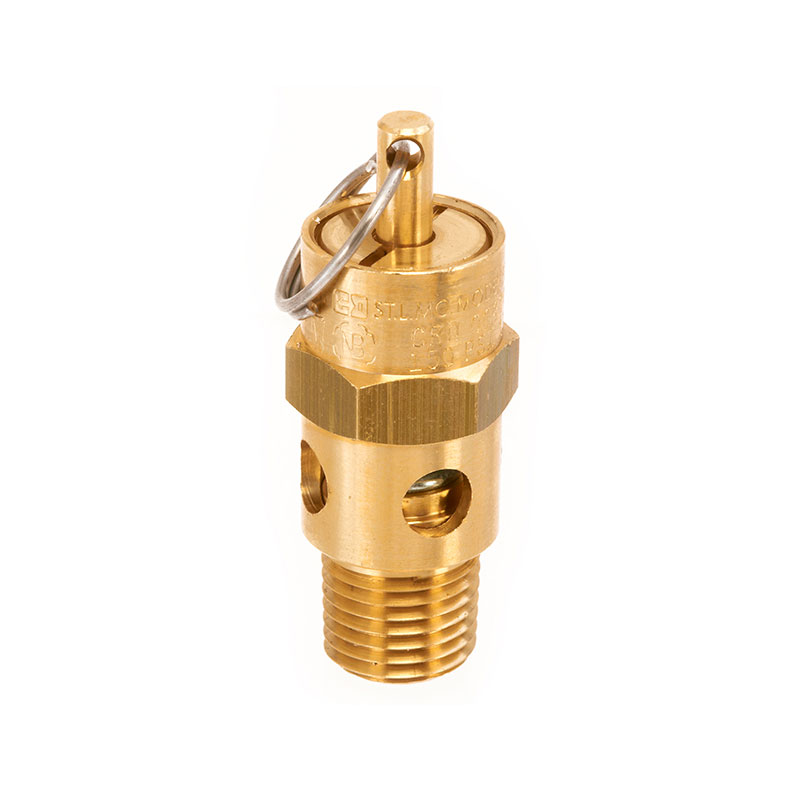

ASME High-Capacity Soft Seat Safety Valves 1/2 NPT

The SB50 Series are 1/2 NPT high-capacity ASME safety valves with a unique O-ring ensures the valve is bubble-tight to within 10% of set pressure. Pressure tolerance: ±3%. Available in two set pressures: 165 and 200 psi.

SKU
SB50 Series
Grouped product items
Product Name Qty
165 psi ASME Soft Seat Safety Valve | SKU SB50-165
$68.30
200 psi ASME Soft Seat Safety Valve | SKU SB50-200
$68.30

A Pressure Relief Valve (also known as a Safety Valve, Overpressure Relief Valve, or simply a Relief Valve) limits the amount of pressure in a compressed gas system. Without such a valve in place, pressure could build up beyond what the system is designed for and cause equipment failure. The Pressure Relief Valve opens at a designed “set pressure” to protect the system against failure from being overpressurized.

Specifications

SKU Set
Pressure
Inlet Size Height Wrench Flat Weight Maximum
Temperature
SB50-165 165 psi 1/2 in NPT   3.59 in   1-11/16   10.0 oz 250°F
SB50-200 200 psi
