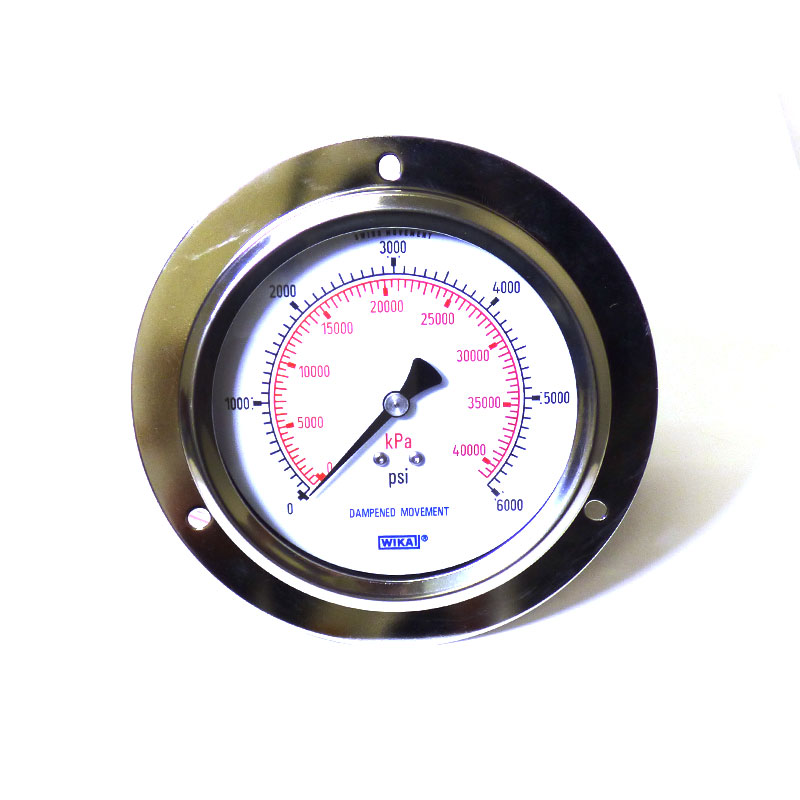

Dry Pressure Gauge: 6000 psi, 4.0 in Dial, Stainless Front Flanger Mount
$99.36
6000 psi (414 bar) stainless steel pressure gauge with dampened movement. 4.0 in dry dial. Wetted parts: Brass tube and socket. Front flanger mount 1/4 in NPT.
SKU
SCF100-1-6000-D-DBR
Specifications
| Configuration | Stainless case front flanger mount Dampened movement |
| Gauge Size | 4.0 in (100mm) |
| Wetted Parts | Brass tube and socket |
| Connection | 1/4 NPT |
| Range | 0–6000 psi |
| Fill | Dry no fill |
| Dial | Dual scale (psi and bar) |
| Accuracy | 2%-1%-2% |
| Design | ANSI/ASME B40.1 |
| Operating Temperture | -40°F to 150°F |
| Temperature Error | Additional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling as a percentage of span. |
| Weather Protection | Weather tight (NEMA 4X / IP 65) |
| Replaces SKU | 40.410.6000FF & 40.911.6000FF |
