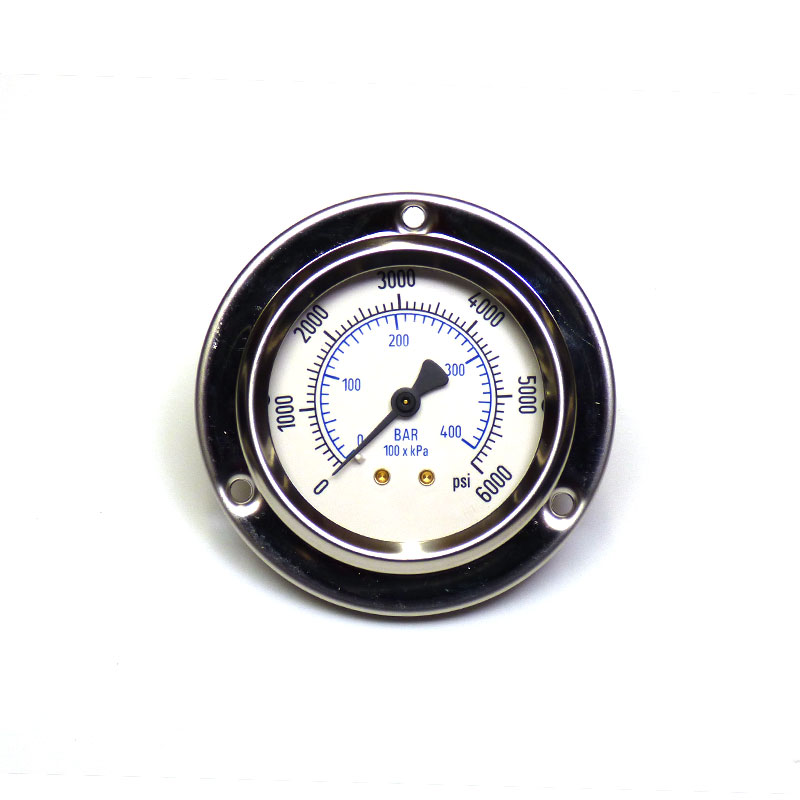

Dry Pressure Gauge for O2 Service: 6000 psi, 2.5 in Dial, Stainless Front Flanger Mount
$104.88
6000 psi (414 bar) stainless steel pressure gauge with dampened movement. Cleaned for oxygen service. 2.5 in dry dial. Wetted parts: Brass tube and socket. Front flanger mount 1/4 in NPT.
SKU
SCF63-1-6000-D-DBR-O
Specifications
| Configuration | Stainless case front flanger mount Dampened movement Oxygen (O2) service ready |
| Gauge Size | 2.5 in (63mm) |
| Wetted Parts | Brass tube and socket |
| Connection | 1/4 NPT |
| Range | 0–6000 psi |
| Fill | Dry no fill |
| Dial | Dual scale (psi and bar) |
| Accuracy | 2%-1%-2% |
| Design | ANSI/ASME B40.1 |
| Operating Temperture | -40°F to 150°F |
| Temperature Error | Additional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling as a percentage of span. |
| Weather Protection | Weather tight (NEMA 4X / IP 65) |
| Replaces SKU | 25.410.6000-FF O2 |
