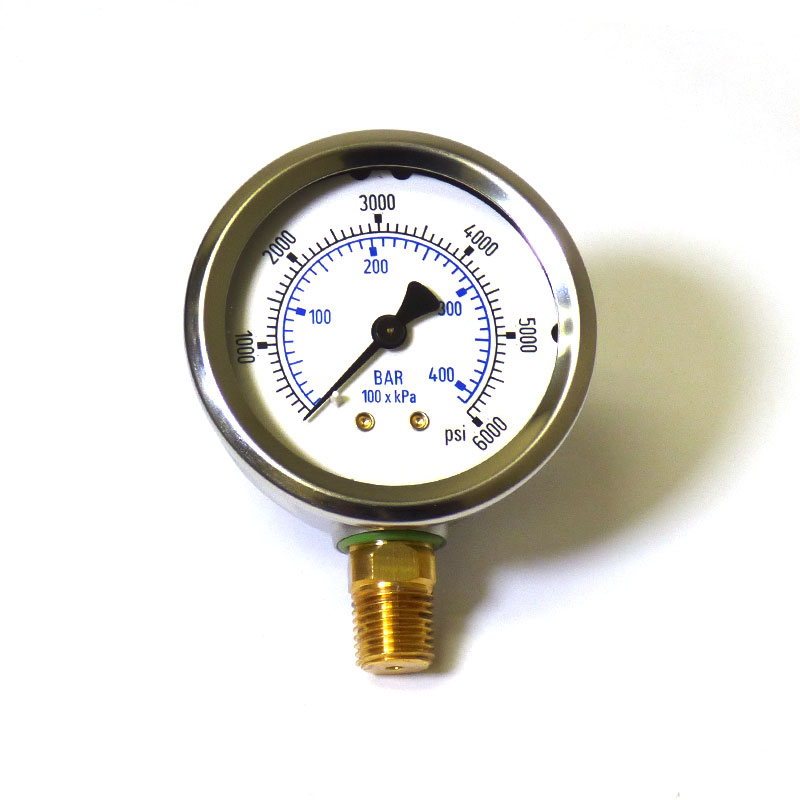

Dry Pressure Gauge for Oxygen Service · 6000 psi · 2.5" Dial · Stem Mount Bottom
$93.50
6000 psi (345 bar) stainless steel pressure gauge with dampened movement. Cleaned for oxygen service. 2.5" dry dial. Wetted parts: Brass tube and socket. Stem mount bottom 1/4" NPT. Suitable replacement for SKU 25.901.6000 O2 and 25.400.6000 O2.
SKU
SCS63-1-6000-D-DBR-O
Specifications
| Configuration | Stainless case stem mount bottom Dampened movement Oxygen (O2) service ready |
| Gauge Size | 2.5" (63mm) |
| Wetted Parts | Brass tube and socket |
| Connection | 1/4" NPT |
| Range | 0–6000 psi |
| Fill | Dry no fill |
| Dial | Dual scale (psi and bar) |
| Accuracy | 2%-1%-2% |
| Design | ANSI/ASME B40.1 |
| Operating Temperture | -40°F to 150°F |
| Temperature Error | Additional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling as a percentage of span. |
| Weather Protection | Weather tight (NEMA 4X / IP 65) |
| Replaces SKU | 25.901.6000 O2 25.400.6000 O2 |
