Remote Oxygen Sensor Replacement | 9506
The Nuvair 9506 remote, inline replacement oxygen sensor is for use with the Nuvair Pro O2 Remote - Handheld (SKU 9452) and Nuvair Pro O2 Remote - Panel Mount (SKU 9460) oxygen analyzers. Sensor may be labeled R17S1.
The Nuvair 9506 is a remote, inline replacement electrochemical oxygen sensor for gas analyzers. Choose from two options: Remote Oxygen Sensor without Diverter (SKU 9506) or Remote Oxygen Sensor with Diverter (SKU 9506-D).
Under normal use, oxygen sensors have an expected service life of 36 months. The 9506 replacement sensor fits the following analyzers:
- Nuvair Pro O2 Remote - Handheld (SKU 9452)
- Nuvair Pro O2 Remote - Panel Mount (SKU 9460)
WARNING: Never expose gas sensors to pressure or you may cause damage and/or false readings. Damaged sensors will not provide accurate gas analysis. Most gas analyzers can be used to analyze a regulated gas sample flow, the contents of a gas cylinder, or the flow from a regulator. The flow rate of gas must equal 1-5 L/min. To produce this flow, a Flow Restrictor and Regulator may be required. A faulty Flow Restrictor can lead to a false analyzer reading. Flow Restrictors should be regularly tested with a Flow Meter. Inaccurate gas analysis can lead to serious personal injury or death.
Specifications
| Output | 25±2 mV in air at 25°C/77°F, sea level |
|---|---|

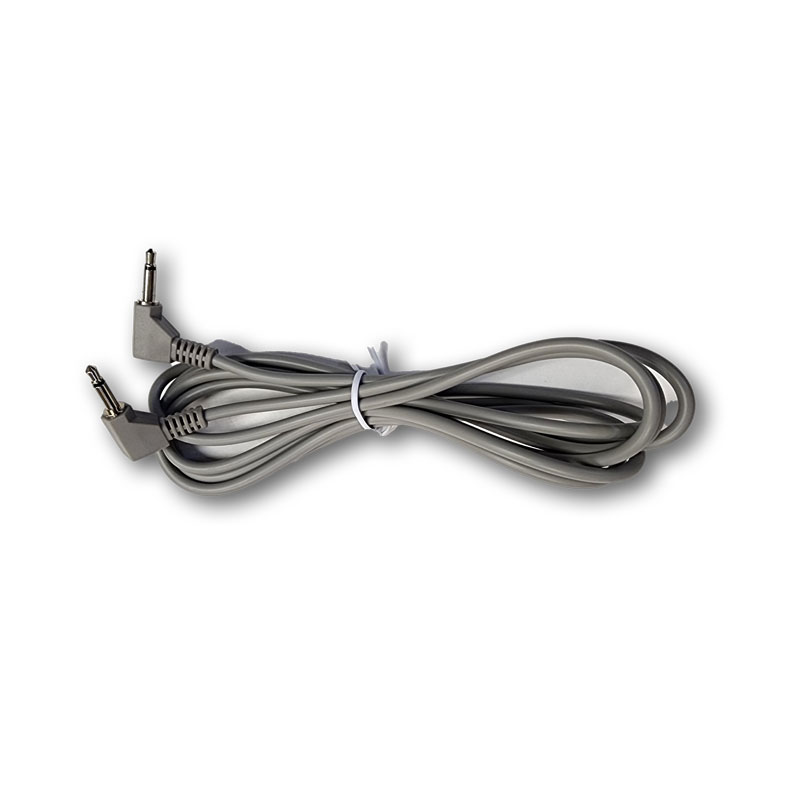

| Electrical Connector | Typical mating plug switchcraft: .141" (3.5mm) miniature phone plugs - screw or clamp-lug terminal Polarity: Tip = negative (–), Sleeve = positive (+) |
| Range | 0-100% Oxygen |
| Accuracy | ±1% of full scale at constant temperature and pressure (0-1 atm) when calibrated with 100% oxygen |
| Sensor Type | Electrochemical |
| Expected Sensor Life | 36 months in air at 25° C/77°F and 50% rh |
| Response Time | <6 seconds for 90% of final value |
| Operating Temperature | 32-104°F (0-40°C) |
| Storage Temperature | 32-122°F (0-50°C) |
| Humidity | 0-99% rh (non-condensing) |
| Weight | 1.1 oz (31 g) |
| Application | For surface/above water in-line gas oxygen analysis; not intended for underwater use. |
| Warranty | 0 – 12 Months Free Replacement 13 – 18 Months 50% Off Replacement 19 – 24 Months 25% Off Replacement |
| External Thread Size | M 16X1 |
