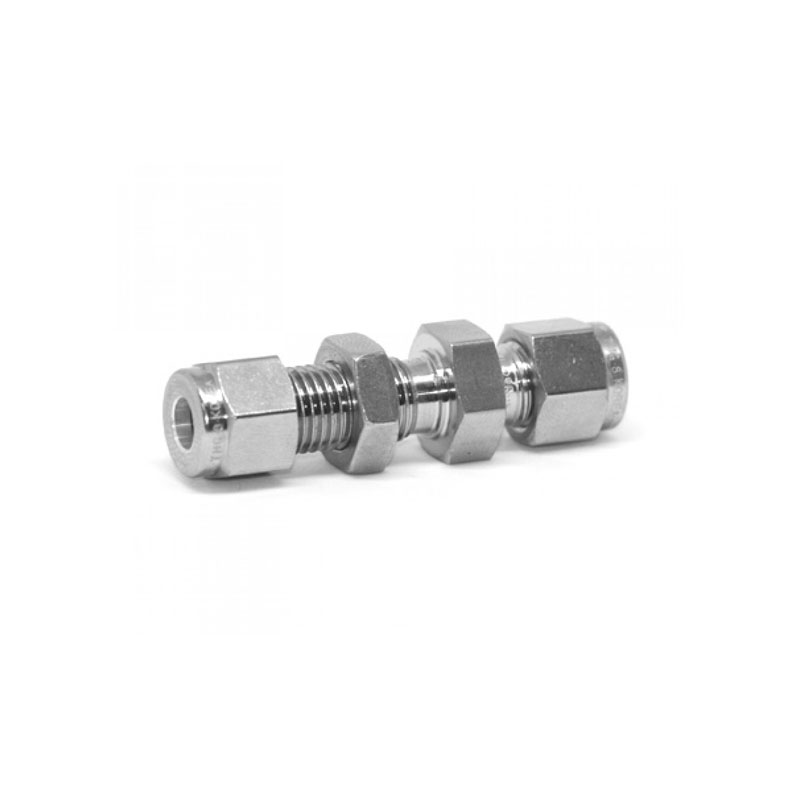

main product photo

Skip to the beginning of the images gallery

Tube to Tube Bulkhead Union Series

Connections fractional or metric tubes. Stainless steel. Various sizes available. All bulkhead fittings come with nuts.

SKU

CBU-316 Series

Grouped product items
Product Name	Qty
1/8" Tube to Tube Bulkhead Union \| 2BU-316 $36.58
1/4" Tube to Tube Bulkhead Union \| 4BU-316 $30.00
3/8" Tube to Tube Bulkhead Union \| 6BU-316 $38.25
1/2" Tube to Tube Bulkhead Union \| 8BU-316 $62.40
8mm Tube to Tube Bulkhead Union \| 8BU-316ME $30.25

Specifications

SKU	D Tube O.D.	d (Min.)	h, h₁*	H*	A (mm)	B (mm)	ℓ (mm)	ℓ₁ (mm)	L (mm)	L₁ (mm)	P²	P³
2BU-316	1/8 (3.17mm)	2.28	1/2	7/16	12.70	15.24	38.10	24.63	51.30	31.24	8.33	12.70
4BU-316	1/8 (3.17mm)	2.28	3/4	7/16	12.70	15.24	26.92		33.52
6BU-316	1/4 (6.35mm)	4.82	9/16	9/16	15.24	17.78	23.87		31.24
8BU-316	1/4 (6.35mm)	4.82	3/4	9/16	15.24	17.78	28.44		35.81
8BU-316ME	3/8 (9.52mm)	7.11	3/4	11/16	16.76	19.30	30.22		37.59

* Width Across Flat (in)
² Panel Hole Drill Size
³ Panel Maximum Thickness
