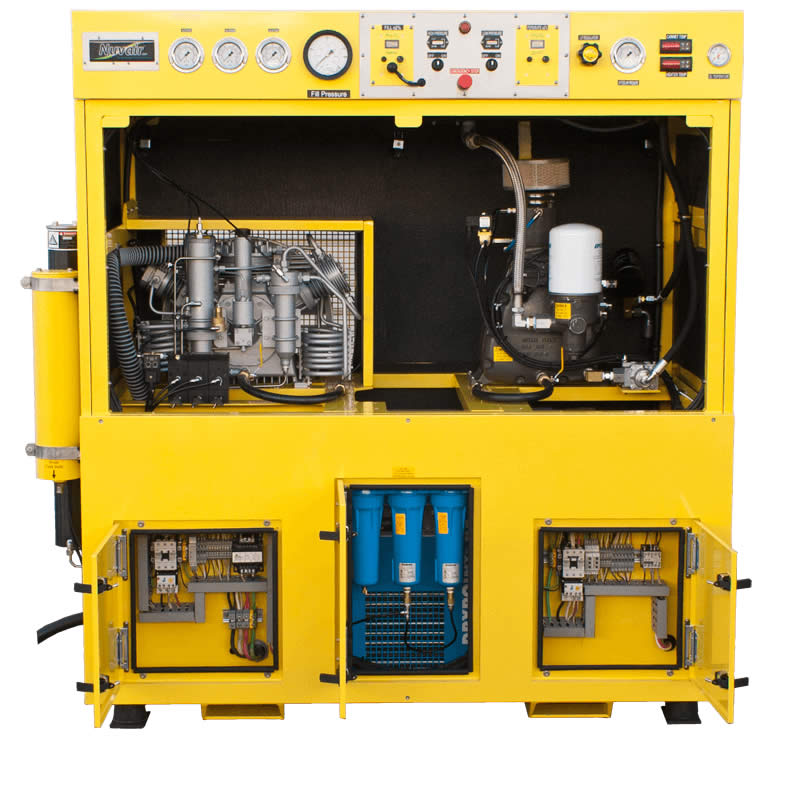

Voyager Open II, III & IV Nitrox Generating Systems
This turnkey low- and high-pressure nitrox generating system pumps air up to 5000 psi (345 bar) and produces 22-40% nitrox (≤EANx40) at 3600 psi (250 bar). Its open frame allows for cool running in hot or humid environments and for easy access to the equipment for maintenance. Choose from three models based upon required output rates.
SKU
7041 / 7042 / 7043
Features
- Continuous duty compressors
- LP rotary screw compressor with intake modulation
- Large LP oil/air cooler with exhaust air fan
- Refrigerated air dryer for extended filter life
- Hankison LP filtration (four filters)
- Nuvair Membrane System
- Digital heater thermostat control
- Permeate and fill O2% analyzers
- Pumps air up to 5000 psi (345 bar) and generates 22-40% nitrox (≤EANx40) at 3600 psi (250 bar)
- NEMA 4x motor control boxes with soft start
- Interstage pressure gauges
- 60,000 cu ft HP filtration standard
- LP/HP hour meters
- High pressure shutdown
- High temperature shutdown
- Low oil shutdown
- LP and HP condensate drains
- Marine grade aluminum frame with stainless steel compressor plate
- Crash frame with four-point lifting eyes
Advantages
- Complete state-of-art LP/HP nitrox generating system
- Pumps air or nitrox up to 40% oxygen (EANx40)
- Open model for cool running
Options
- CO, CO2, O2, H2S or moisture analyzers
- Nitrox manager
- CO2 scrubber
- 90,000 cu ft filtration upgrade or OCA
- Dial-a-pressure shutdown
- High/Low oxygen percentage automatic shutdown
Specifications
| Nitrox Generator Model | Voyager II | Voyager III | Voyager IV | |
|---|---|---|---|---|
| Physical Specifications | Height Width Depth Weight |
66 in (168 cm) 38 in (97 cm) 76 in (193 cm) 1025 lb (466 kg) |
66 in (168 cm) 38 in (97 cm) 76 in (193 cm) 1215 lb (552 kg) |
66 in (168 cm) 38 in (97 cm) 76 in (193 cm) 1275 lb (580 kg) |
| Full Load Amps | 208-230 V / E1 / 60 Hz 208-230 V / E3 / 60 Hz 380-415 V / E3 / 50 Hz 440-480 V / E3 / 60 Hz |
95 A SKU 7041.3 46 A SKU 7041.6 23 A SKU 7041.6 26 A SKU 7041.3 |
N/A 79 A SKU 7042.2 44.5 A SKU 7042.6 39 A SKU 7042.3 |
N/A 95 A SKU 7043.3 50 A SKU 7043.6 55 A SKU 7043.2 |
| LP Compressor | Capacity @ 175 psi | 29 CFM (821 L/min) EK76 |
44 CFM (1250 L/min) EK76 |
59 CFM (1670 L/min) EK76 |
| Horsepower | LP Compressor HP Compressor |
10 hp (7.5 kW) 7.5 hp (5.5 kW) |
15 hp (11 kW) 10 hp (5.5 kW) |
20 hp (15 kW) 15 hp (11 kW) |
| HP Compressor | FAD for 22-40% O2 |
9.3 CFM (263 L/min) |
13.2 CFM (374 L/min) |
17 CFM (481 L/min) |
