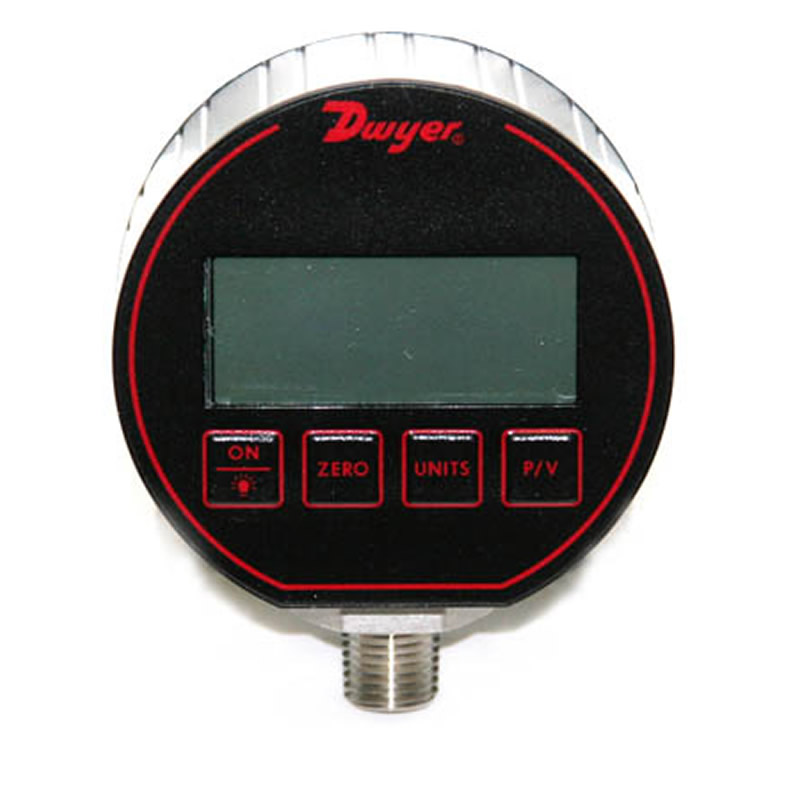

Digital Pressure Gauge: 5000 psi · 3" Dial · Lower Mount
5000 psi (345) bar digital pressure gauge. 3.0" dial. Bottom mount 1/4" NPT male. Replaces antiquated analog gauges. Battery powered.
Specifications
| Service | Compatible liquids and combustible gases (for FM listing see Agency Approvals below) |
| Range | 0-5000 psi (0-345 bar) |
| Wetted Materials | Type 316L SS |
| Housing Materials | Polycarbonate front and back cover, anodized aluminum extruded housing with recessed grooves, polycarbonate overlay, Buna-N O-rings, 316L SS sensor construction |
| Accuracy | DPG-100: ±0.25% FS; ±1 least significant digit @ 70°F (21°C) (includes linearity, hysteresis, repeatability) |
| Pressure Limit | 2x pressure range for models ≤1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range. |
| Enclosure Rating | Designed to meet NEMA 4/4X (IP66) |
| Temperature Limits | 0 to 130°F (-18 to 55°C) |
| Thermal Effect | Between 70 to 130°F is 0.016%/F. Between 32 to 70°F is 0.026%/F. Between 10 to 32°F is 0.09%/F. Between 0 to 10°F is 0.50%/F |
| Size | 3.00" OD x 1.90" deep (max) |
| Connection | 1/4" male NPT |
| Weight | 8.84 oz (275 g) |
| Display | 4 digit (.425" H x .234" W digits) |
| Power Requirements | (2) AAA alkaline batteries, included, user replaceable |
| Battery Life | 2000 hours typical; Low battery indicator. (60 hours in continuous use) |
| Auto Shut-Off | Gauge: 60 minute auto shut-off. Auto shut-off may be disengaged. Backlight: 2 minute auto shut-off |
| Agency Approvals | DPG-100: CE, FM approved to be intrinsically safe for Class I, Division 1, Groups A, B, C and D, for ranges 0-5 to 0-3000 psi |
Overview
Replace outdated analog gauges with a digital pressure gauge. The DPG-111 has a high ±0.25% or ±0.5% full-scale accuracy. The four-digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. PDG-111 is battery powered and has an auto-shut off to conserve battery life. Battery life, on average, will last 2000 hours. A four-button keypad allows easy access to features without the need to work through complex menus or difficult key combinations. These features include backlight, peak and valley, tare or auto zero and conversion of the pressure units. Readings to 5000 psi (345 bar).
Features
- High accuracy provides exceptional measurement minimizing costly out of specification conditions
- Backlit four-digit display provides clear parallax-free reading reducing potential for errors
- Battery-powered gauge with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
- Push-button zero reduce installation and service time
