Champion® compressors are proven units, known for their reliability over decades of use. We know our products and understand how they operate in many different operating environments. No matter the application, Champion gets the job done.

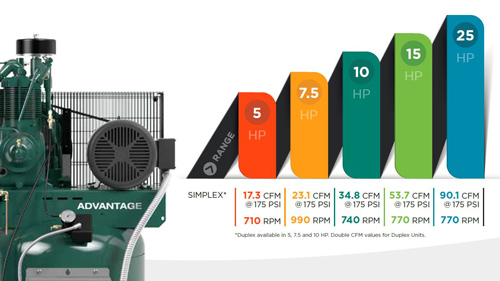

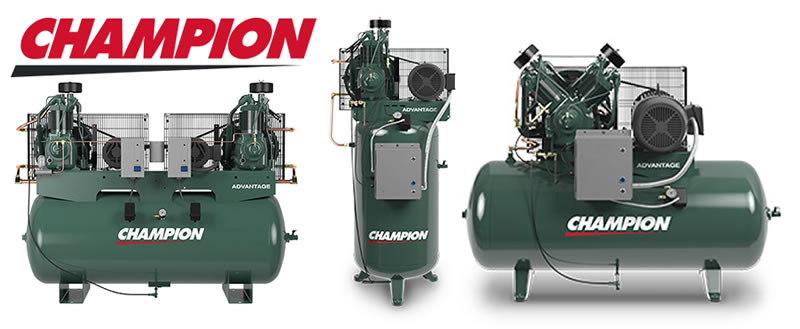

The Advantage Program features fully-equipped reciprocating compressor packages from 5 to 25 horsepower.†
Advantage Standard Features
Premium accessories on a superior performing compressor—saves you time and protects your investment.*
Heavy Duty Two-Stage, Splash-Lubricated Air Compressor Pump(s)
Multi-Finned Cylinders and Head
Integral Cylinder Head
Intercoolers for Cooling Between Stages
Reliable High Flow Disc Valves
ASME Coded Air Receiver - Pressure Relief Valve - Service Valve - Drain Valve - Pressure Gauge
Tapered Roller Main Bearings
Oil-Level Site Glass
Centrifugal Unloader for Loadless Starting
0-300 psi Air Pressure Gauge
Factory Fill with ChampLub Lubricants
Vertical or Horizontal Configurations
Start/Stop Pressure Switch Control
Oversized Inlet Filter
Champion Premium Accessories Included
Mounted Control Panel Provides thermal overload protection, and transformer provides reliable low voltage output to the auxiliary components.
Automatic Tank Drain Automatically discharges moisture from receiver.
Vibration Isolators Isolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from vibrations that could cause damage.
Low-Oil Stop Control Shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting until oil level has been restored.
Air-Cooled Aftercooler The factory mounted, heavy duty, air-cooled aftercooler effectively removes up to 65% of the moisture from discharged compressed air.
Test-Off-Auto (TOA) Switch - Kit‡
Hour Meter - Kit‡
Premium Extended Warranty Kit
‡ Items are shipped loose and are not installed on the compressor package.
The standard warranty covers parts and labor on the package components for one year and three years on the compressor pump. The Champion philosophy ensures long-lasting, reliable equipment. Our warranty program demonstrates our confidence in our products. Each new Champion assembled unit has a 3 year warranty on the compressor pump against defects in materials of workmanship under normal use and service. See Standard Warranty Form BU-32 for complete standard warranty details.
Premium Extended Warranty
Purchase a Premium Warranty Kit at the same time as your new Champion compressor package to receive extended warranty protection. This offer will double the coverage with an additional 3 years of warranty on the compressor pump (parts & labor) providing 6 YEARS of worry free coverage. The Premium Extended Warranty also provides an extra 12 months coverage on the package for a total of 24 months. See Premium Warranty Form BU-28 for complete extended warranty details.
Premium Warranty kit has all necessary service items (oil & filters) for 6 years of annual maintenance.
The use of approved Champion lubricants are required to maintain the extended warranty period.
Duplex machines require two kits, one for each pump.
