From $217.83
To $823.32
The Nuvair Custom Temperature Safety Alarm sounds a piezo alarm and displays a visual LED indicator to alert operators of temperatures exceeding 350°F (176.7°C). The Customized Temperature Safety Alarm can support up to four (4) remote temperature switches. Temperature switches are typically installed on a compressor's final stage. Powered by a rechargeable lithium battery; charger included.
Housed in a NEMA 4X/13 PVC enclosure, the Nuvair Custom Temperature Safety Alarm sounds an audible alarm and activates a red light at the controller box when one of up to four (4) remote temperature switches sense temperature/s exceeding 350°F (176.7°C). Powered by a Lithium-ion 7.4V 800mAh battery with PCB, the Safety Alarm includes a battery charger. For cable runs in excess of 50 feet (15m), please contact the please contact the sales team for assistance as your Safety Alarm may need to be modified to allow for longer cable runs from the alarm box.

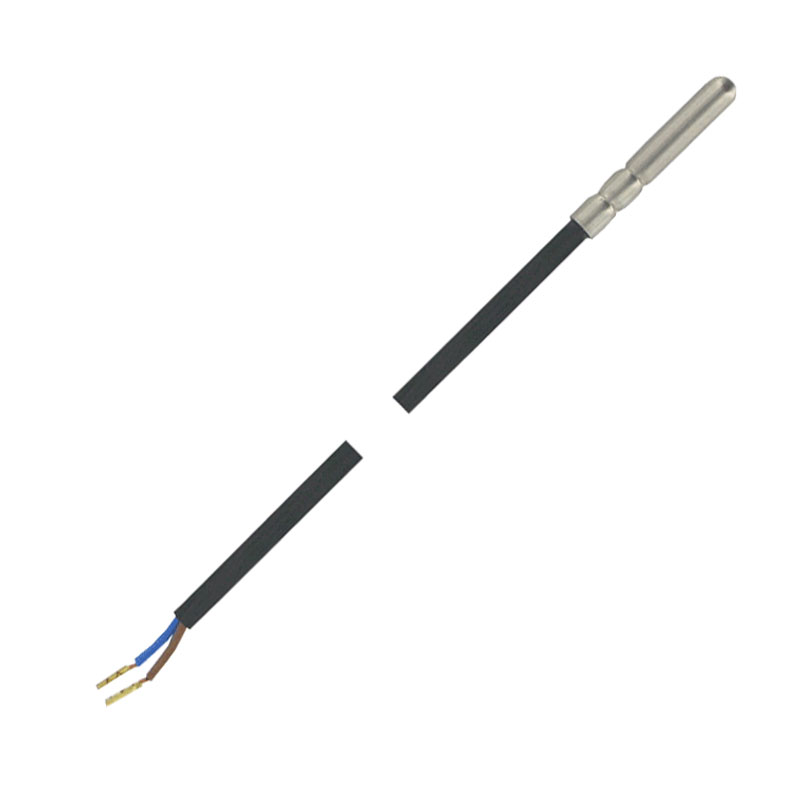

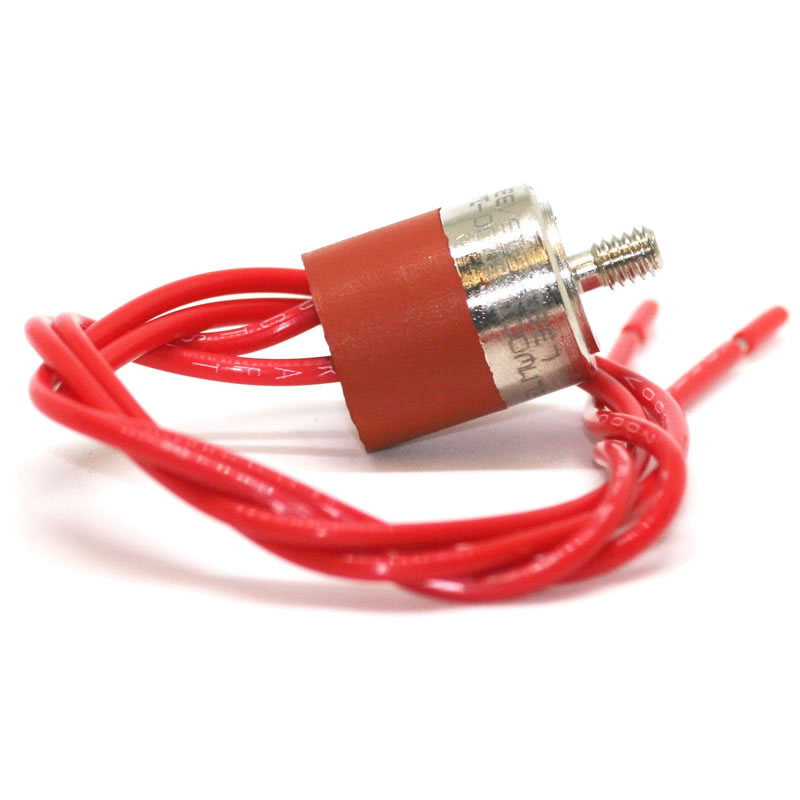

The Nuvair Custom Temperature Safety Alarm can be ordered with up to four (4) temperature switches and matching switch cables. For customers with an existing temperature switch, at least one (1) switch cable must be ordered. Temperature switches have default states of Normally Open (N/O) or Normally Closed (N/C) and are routinely attached to a compressor's final stage. Each switch must be matched with a similar cable, that is, a N/O (normally open) switch must be paired with a N/O (normally open) cable. Customers can order 0–4 temperature switches and 1–4 switch cables with the controller. One (1) switch cable must be included with each controller ordered. To complete your order, please follow these instructions:
Controller Enclosure Size (H × W × D) |
4 × 4 × 2.4" (10.1 x 10.1 x 6.1 cm) |
---|---|
High Temperature Set Point |
350°F (176.7°C) |
Maximum Temperature Switches per Controller |
(4) with Matching Switch Cables |
Power | Lithium-ion 7.4V 800mAh Battery with PCB Battery Charger Included |
Alarm Loudness | 95 dB at 10 feet (3m) |
All Custom Nuvair Safety Alarms are manufactured at the time your order is placed. If a rush order is required, please contact the sales team for estimated lead times.
PLEASE NOTE
· Customized Safety Alarms are special order items and certain components are cannot be returned for credit or refund. For additional information see our RETURNS POLICY. For assistance with ordering your Custom Safety Alarm, please contact the sales team for assistance.
· Additional customizations of this safety alarm are available on special order. For additional details, please contact [email protected].
