#10 SAE x 3/8" MNPT Brass 90° | 149X10X6
$17.48

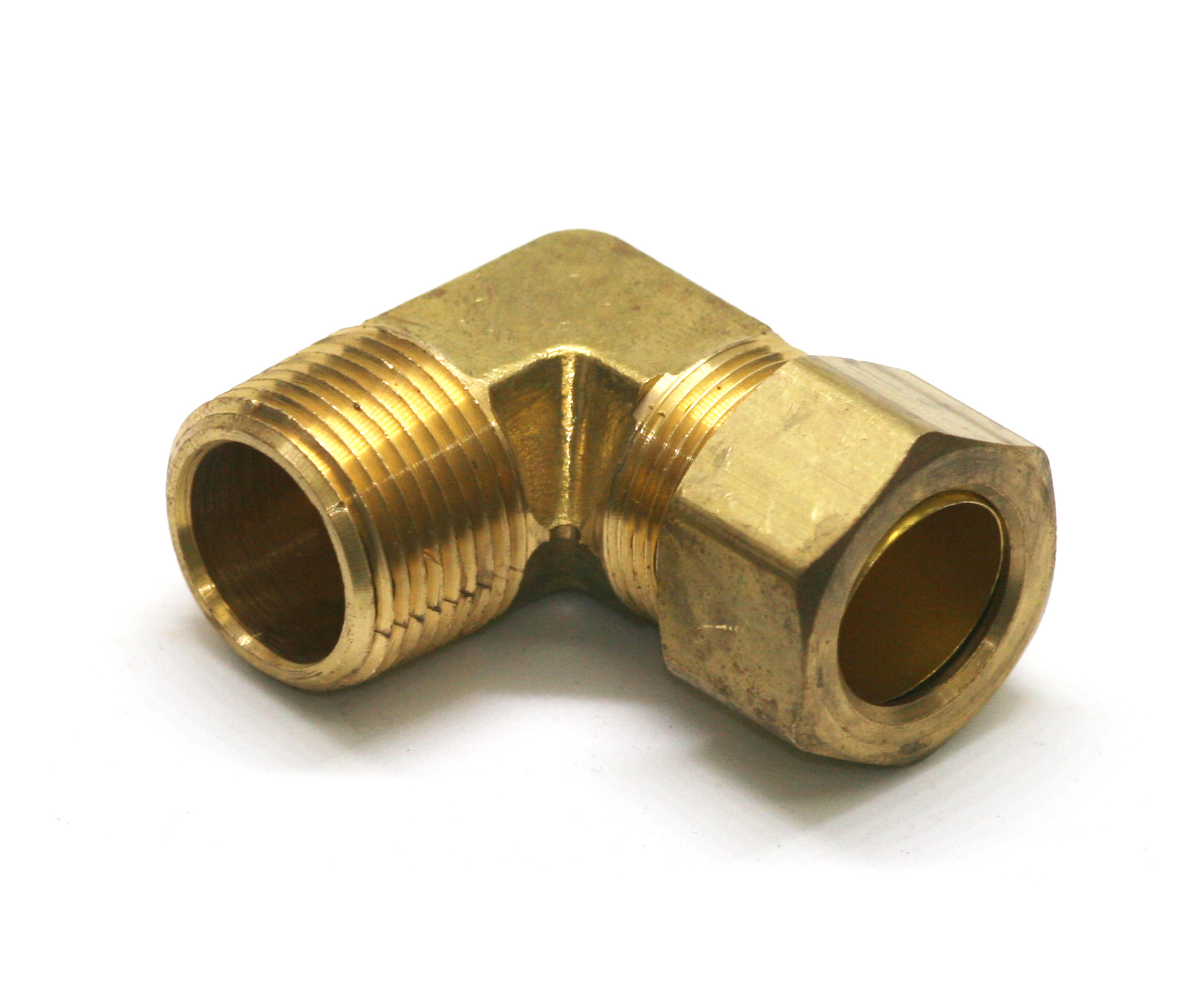

90° elbow, 5/8" Male Flared x 3/8" Male NPTF, Brass. Good vibration resistance. Use long nut when greater vibration resistance is required.
SKU
149X10X6
Specifications
| Fitting Type | 90° elbow |
|---|---|
| Material | Brass |
| Connection 1 Size | 5/8" |
| Connection 2 Size | 3/8" |
| Connection Type | Male Flared | MNPT |
| Connection 1 Type | Male Flared |
| Connection Type 2 | Male NPTF |
| Working Pressure | 1000 psi @ 73°F with copper tubing |
| Temperature Range | –65°F to +205°F (–53°C to +121°C) |
| For Use With | Copper, brass, aluminum, steel hydraulic tubing |
