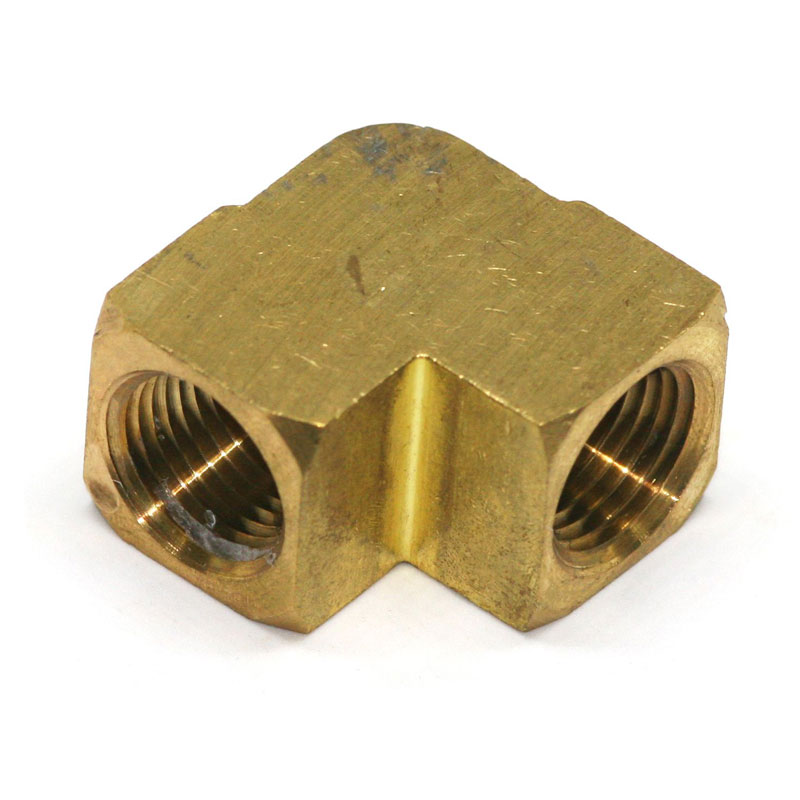

Brass FNPT 90° Pipe Elbow 3/8" | 23500X6
$8.53
Brass Female NPT 90° pipe elbows available in the following sizes: 1/8 in, 1/4 in, 3/8 in, 1/2 in, and 3/4 in. Typical applications: Grease, fuels, LP and natural gas, refrigeration, instrumentation, and hydraulic systems. Temperature range: -65°F to 250°F (-53°C to +121°C). Fair vibration resistance. Used with brass, bronze, copper, steel, aluminum, and iron pipe. Pipe thread should be tightened 2-1/2 turns past finger tight.
SKU
23500X6
Specifications
| Nominal Pipe Size | 1/16 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11 1/2 |
| Working Pressure (psi) | 1200 | 1200 | 1200 | 1200 | 1200 | 1000 | 1000 |
| Thread OD | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | 1-1/4 |
