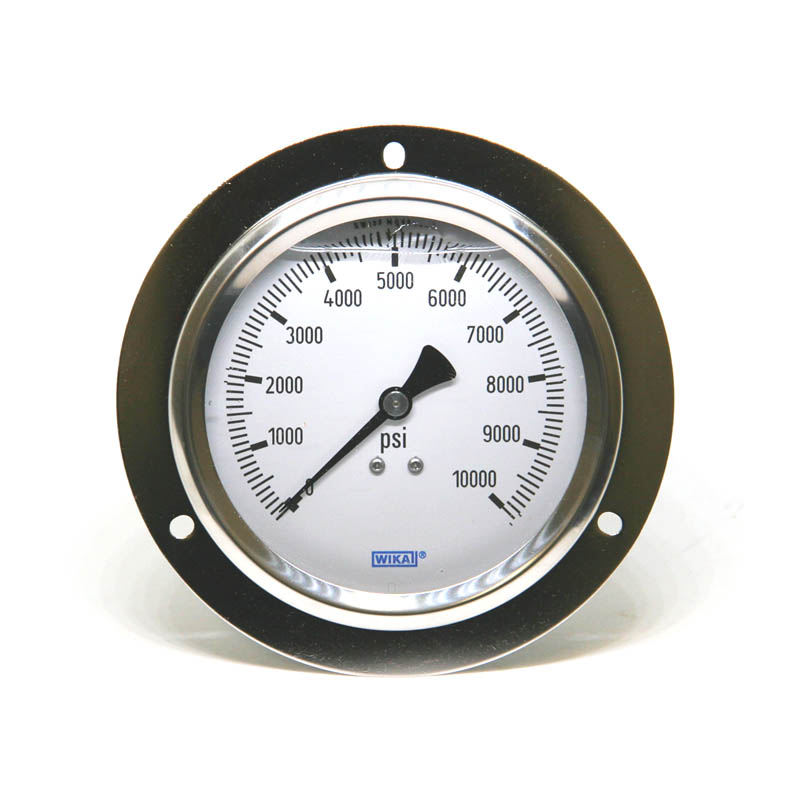

Liquid Filled Stainless Gauge: 10,000 psi · 4" Dial · Front Flange

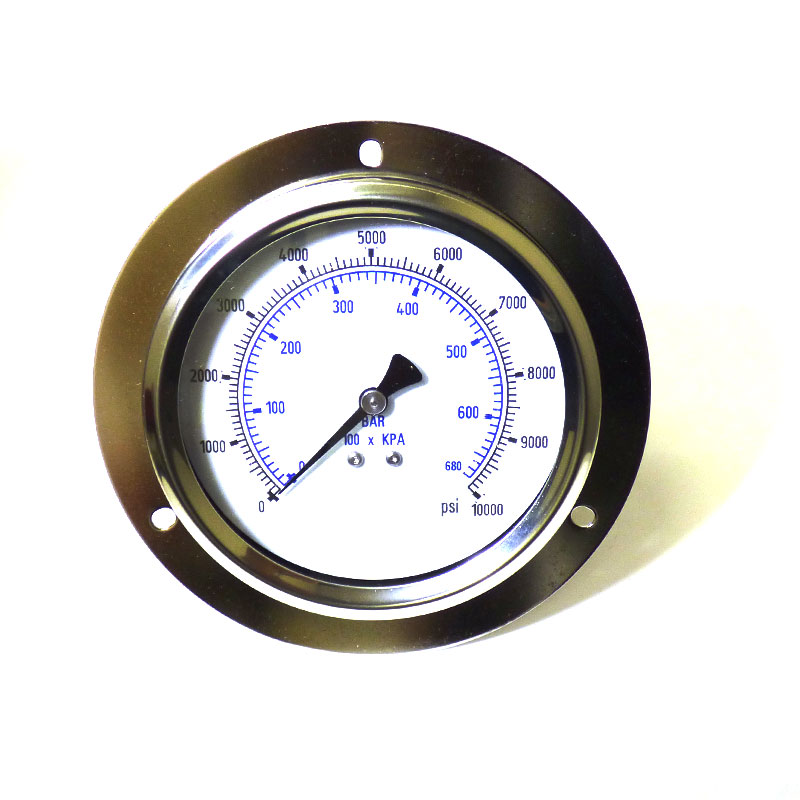

10,000 psi (689 bar) stainless steel pressure gauge. 4" liquid-filled dial. Lower back mount 1/4" NPT. Stainless steel front flange. Suitable for hydraulics and compressors. Can be substituted with SKU SCF100-1-10000-D-DBR.
SKU
40.911.10000FF
Standard Features
| Connection Size | 1/4" NPT |
| Connection | Lower back mount (LBM) |
| Dial Scale | 10,000 psi (689 bar) |
| Case | 304 stainless steel |
| Wetted Parts | Copper alloy |
| Window | Polycarbonate |
| Window Ring | Stainless steel, crimped |
| Dial | White aluminum |
| Pointer | Black aluminum |
| Case Fill | Glycerine |
| Accuracy | ±2/1/2% of span |
| Accessory | Stainless steel front flange |
| Replacement | SCF100-1-10000-D-DBR |
Typical Applications
| Intended for adverse service conditions where pulsating or vibration exists (with liquid filling) |
| Suitable for gaseous or liquid media that will not obstruct the pressure system |
| Hydraulics and compressors |
