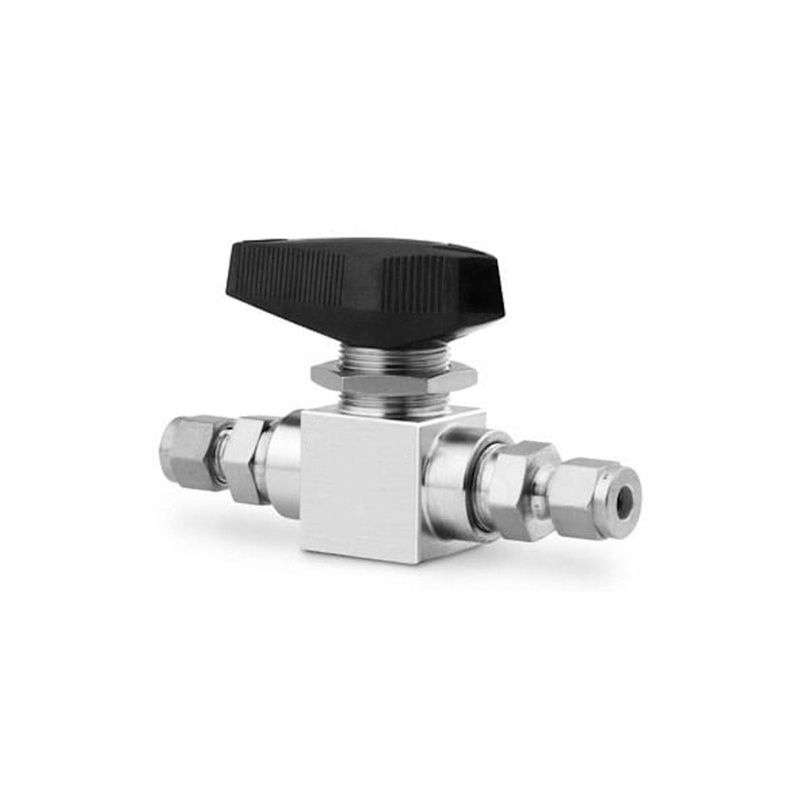

Stainless Two-Way Ball Valve 1/4" FNPT 6000 psi
$85.80
High-pressure stainless steel two-way shutoff ball valve. Forged. Each valve tested with nitrogen at 1000 psi (69 bar) to maximum leak rate of 0.1 SCCM. Rated to 6000 psi (414 bar).
SKU
7115F4Y-NG
Specifications
| Material | Stainless Steel 316 |
|---|---|
| Pressure Rating | 6000 psi (414 bar) @ 70°F (21°C) with PCTFE seats |
| Temperature Range | -65°F to 450°F (-54°C to 177°C) with PCTFE seats |
| Flow Co-efficient | 2.34 |
| Hole Panel Diameter | 0.77 (19.60) |
| Maximum Panel Thickness | 0.25 (6.40) |
