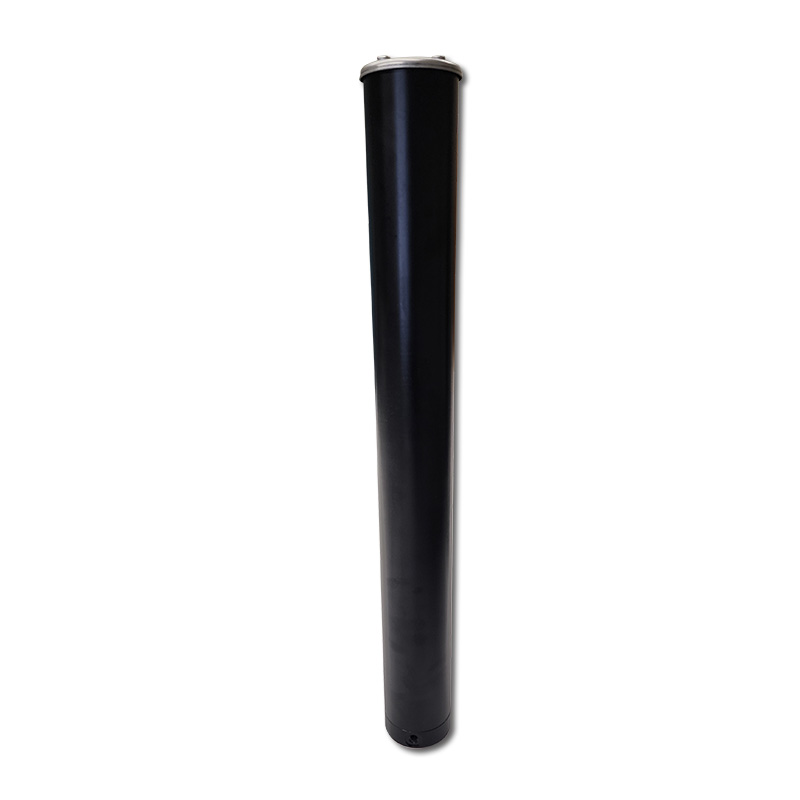

Nuvair CAN-35 Filter Canister · 6000 psi (414 bar) | CAN-35-6000
$1,192.00
Manufactured by Nuvair, the CAN-35 high-pressure filter canisters fit 27" x 2.75" filter elements. Housing pressure rating: 6000 psi (414 bar). Canister does not include filter element. Compatible filter elements are listed below.
SKU
CAN-35-6000
The CAN-35-6000 includes the following components:
- CAN35-NUV-MB: CAN-35 Main Body/Tube
- CAN35-NUV-B: CAN-35 Base Cap
- CAN35-NUV-T: CAN-35 Top Plug
- CAN35-NUV-RC: CAN-35 Stainless Steel Rain Cap
- GO30: Seal Kit for CAN-15/CAN-35 Filter Canisters
Nuvair CAN-35-6000 Specifications
| Housing Life | 10 years |
|---|---|
| Maximum Working Pressure | 6000 psi (414 bar) |
| Temperature Minimum/Maximum | 14°F · 122°F |
| External Dimensions | 32.5" L x 3.75" W |
| Filter Element Dimensions | 27" L x 2.75" W |
| MAXIMUM ALLOWABLE CYCLES | WORKING PRESSURE |
| 85,000 | 2000–3600 psi |
| 25,000 | 3601–4700 psi |
| 20,000 | 4701–6000 psi |
